Radiator Cooling Fan Disassembly and Reassembly: Reassembly

Reverse disassembly procedure for reassembly noting the following.

• Tighten fan nuts and radiator cooling fan motor bolts to specified torque.

  Tightening torque

  Fan nut (a): 6 N.m (0.61 kgf-m, 4.5 lbf-ft)

  Radiator cooling fan motor bolt (b): 4 N.m (0.41 kgf-m, 3.0 lbf-ft)

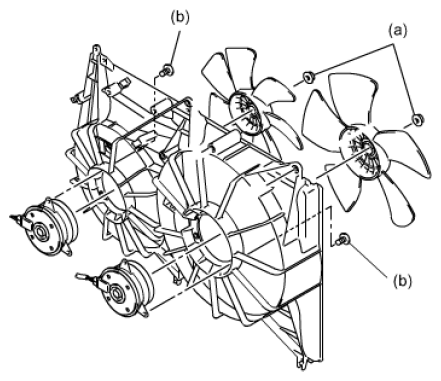

  Fig 1: Identifying Radiator Cooling Fan Motor Bolts And Fan Nut

  Courtesy of SUZUKI OF AMERICA CORP.
