Radiator Cooling Fan Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Disconnect main fan motor connector (connector color: black) (1) and sub fan motor connector (connector color: gray) (2).

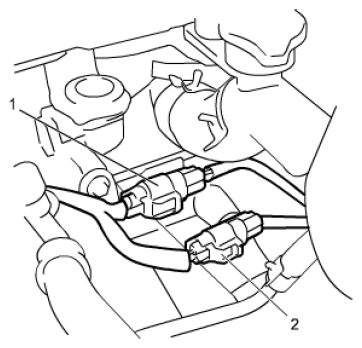

    Fig 1: Identifying Main Fan Motor Connector And Sub Fan Motor Connector
    G08895472Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove air cleaner assembly and air cleaner outlet hose. Refer to AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
  4. Detach P/S fluid reservoir (1) with reservoir bracket and hose connected.
    NOTE: No need to drain P/S fluid.
  5. Disconnect ground terminal (2).
  6. Remove reservoir (3) from radiator.

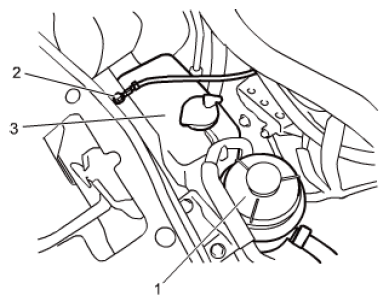

    Fig 2: Identifying Reservoir And Ground Terminal
    G08895473Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove cooling fan assembly.
