Audio System Circuit Diagram: Notes

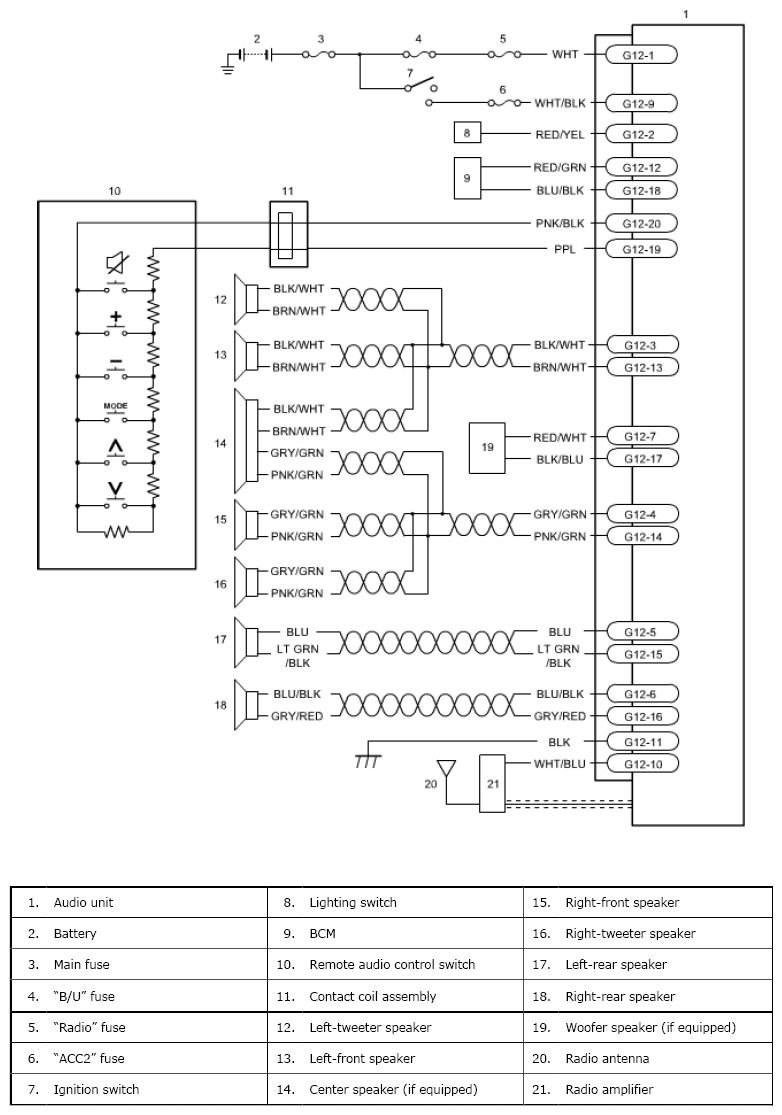

Fig 1: Audio System - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
