Combination Meter Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove screws (1) fastening combination meter cluster panel.
  3. Remove combination meter cluster panel (2) pulling it in arrow direction shown in figure.

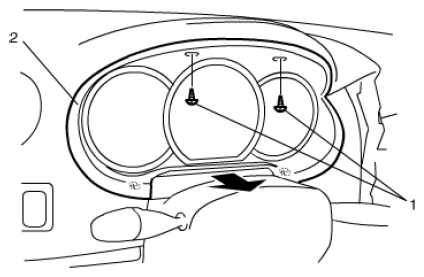

    Fig 1: Removing Combination Meter Cluster Panel
    G08899528Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove screws (1) fastening combination meter.
  5. Remove combination meter (2) pulling it arrow direction as shown.

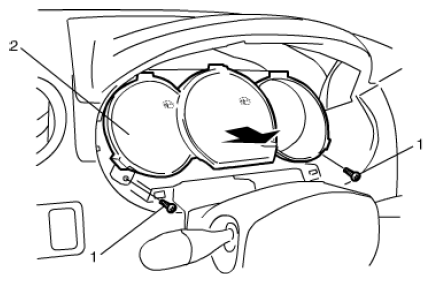

    Fig 2: Removing Combination Meter
    G08899529Courtesy of SUZUKI OF AMERICA CORP.
