Audio Unit Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove instrument panel center garnish trims (1).

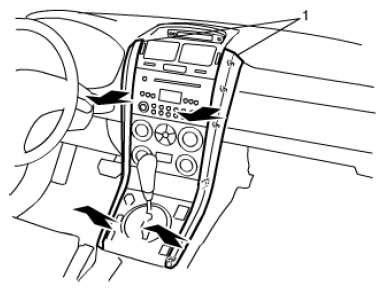

    Fig 1: Removing Instrument Panel Center Garnish Trims
    G08899541Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove 6 mounting screws (1).
  4. Disconnect electrical connectors from audio unit and HVAC control module.
  5. Remove audio unit (2) with HVAC control module from instrument panel.

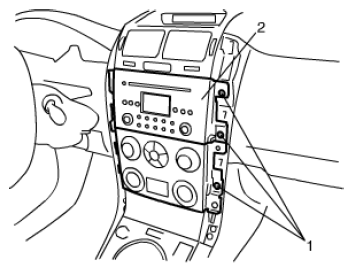

    Fig 2: Identifying Audio Unit And Mounting Screws
    G08899542Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove audio unit from HVAC control module.
