Accessory Drive Belt Removal and Installation: Removal
- Disconnect negative (-) cable from battery.

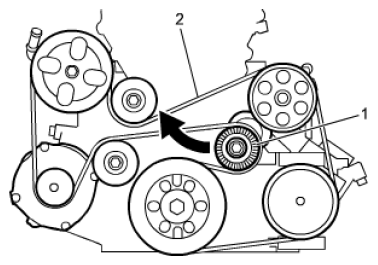

- Loosen belt tension by turning tensioner (1) clockwise with torque wrench.
- While keeping tensioner in the loose position remove accessory drive belt (2).
Courtesy of SUZUKI OF AMERICA CORP.
