F-1 Air-Bag System Circuit Diagram (8ch)

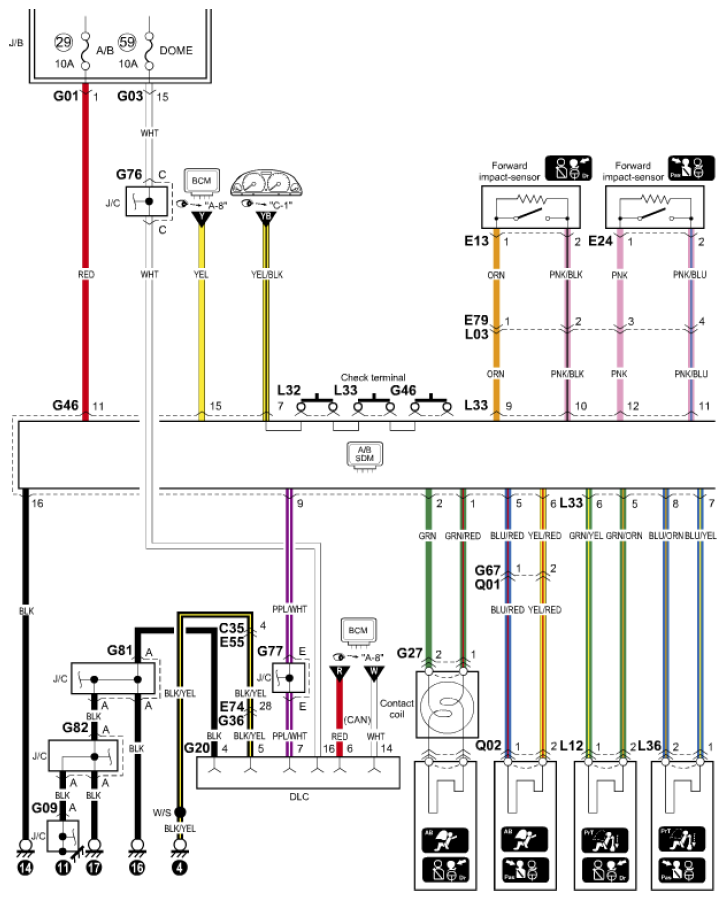

Fig 1: F-1 Air-Bag System (8ch) - Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

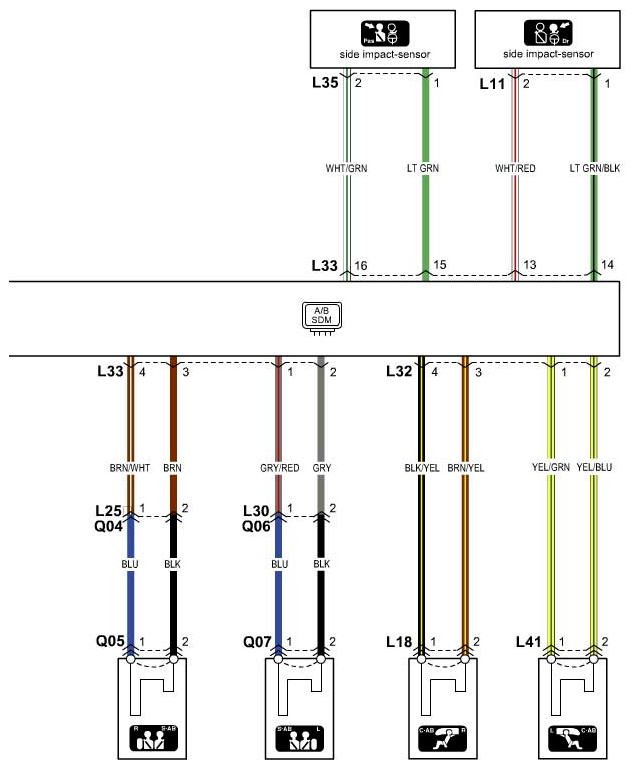

Fig 2: F-1 Air-Bag System (8ch) - Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
