D-6 Turn Signal and Hazard Warning Light System Circuit Diagram

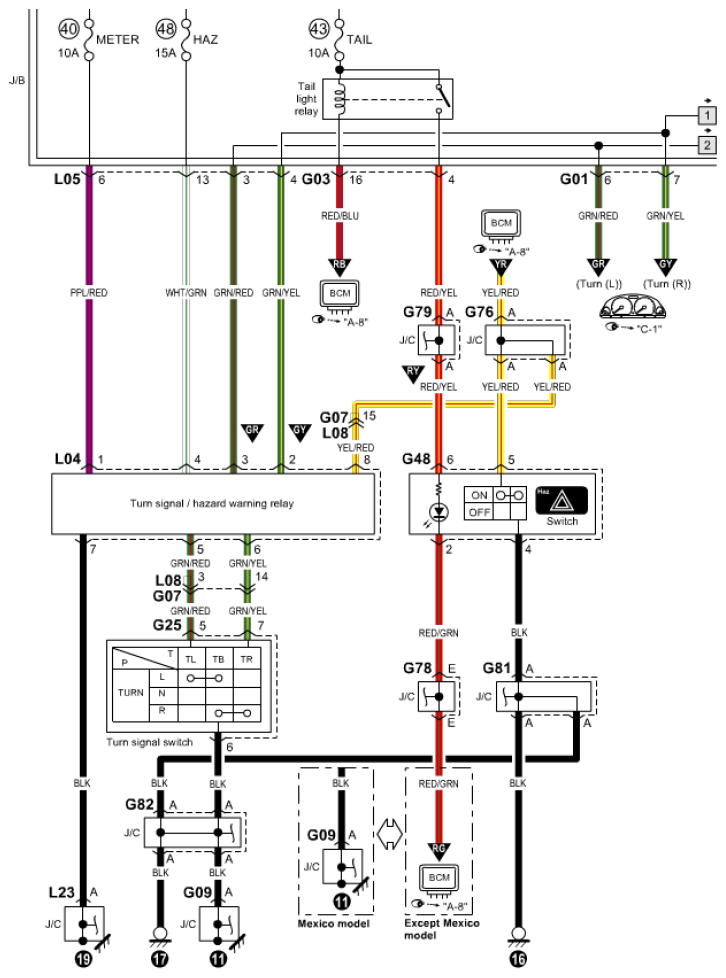

Fig 1: D-6 Turn Signal And Hazard Warning Light System - Circuit Diagram (1 Of 2)
G08899409Courtesy of SUZUKI OF AMERICA CORP.

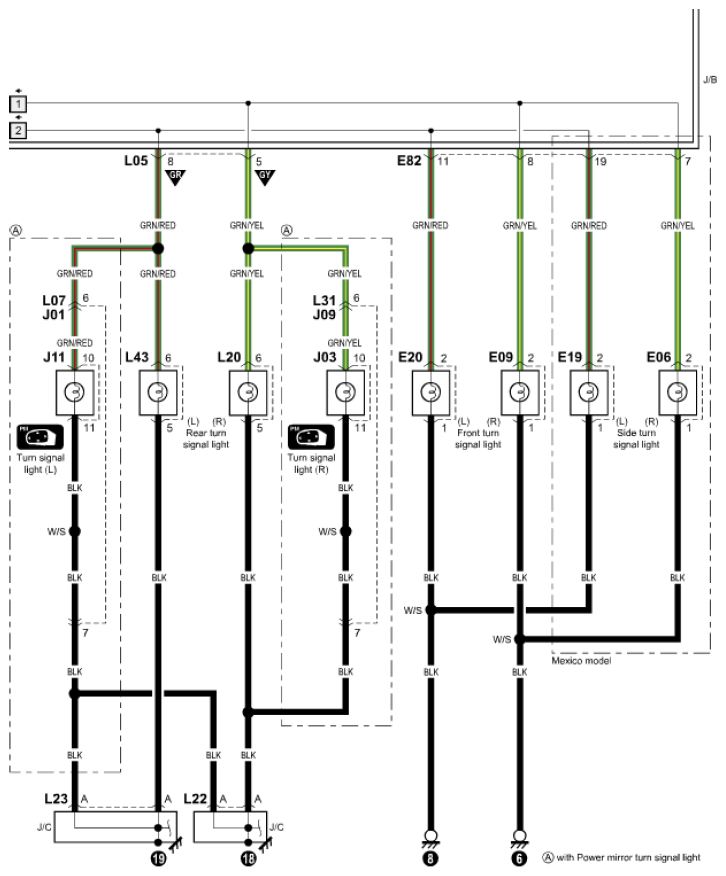

Fig 2: D-6 Turn Signal And Hazard Warning Light System - Circuit Diagram (2 Of 2)
G08899410Courtesy of SUZUKI OF AMERICA CORP.
