B-7 Horn Circuit Diagram

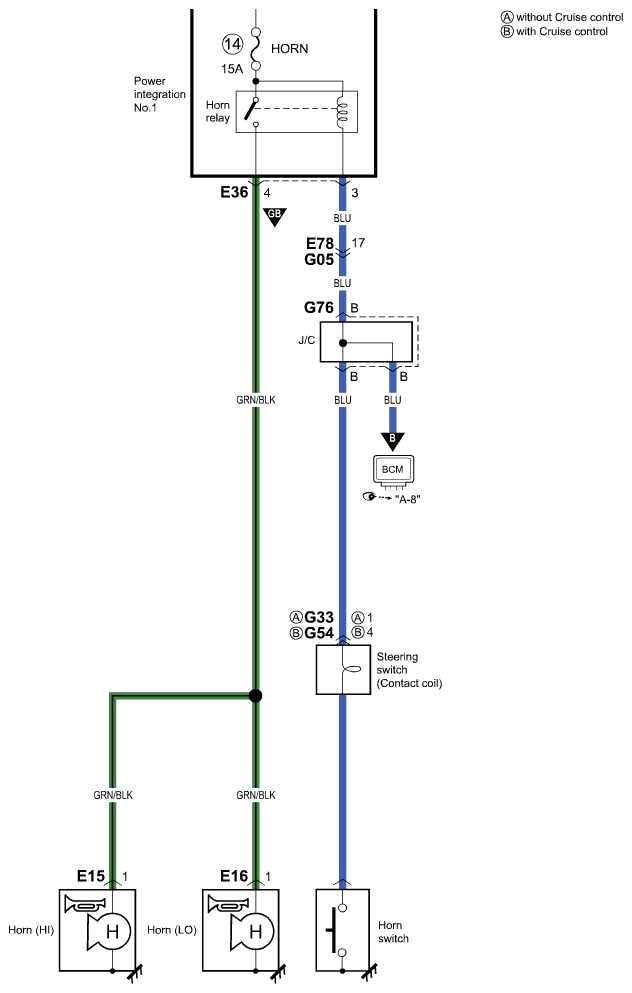

Fig 1: B-7 Horn - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
