B-11 Headlight Washer Circuit Diagram

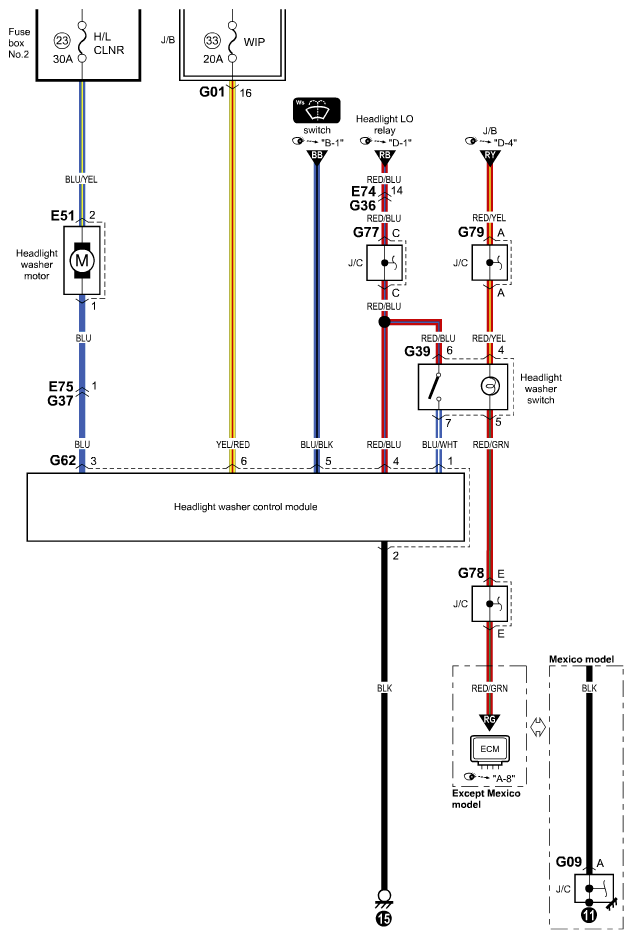

Fig 1: B-11 Headlight Washer - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
