J/B Inner Circuit (Detail)

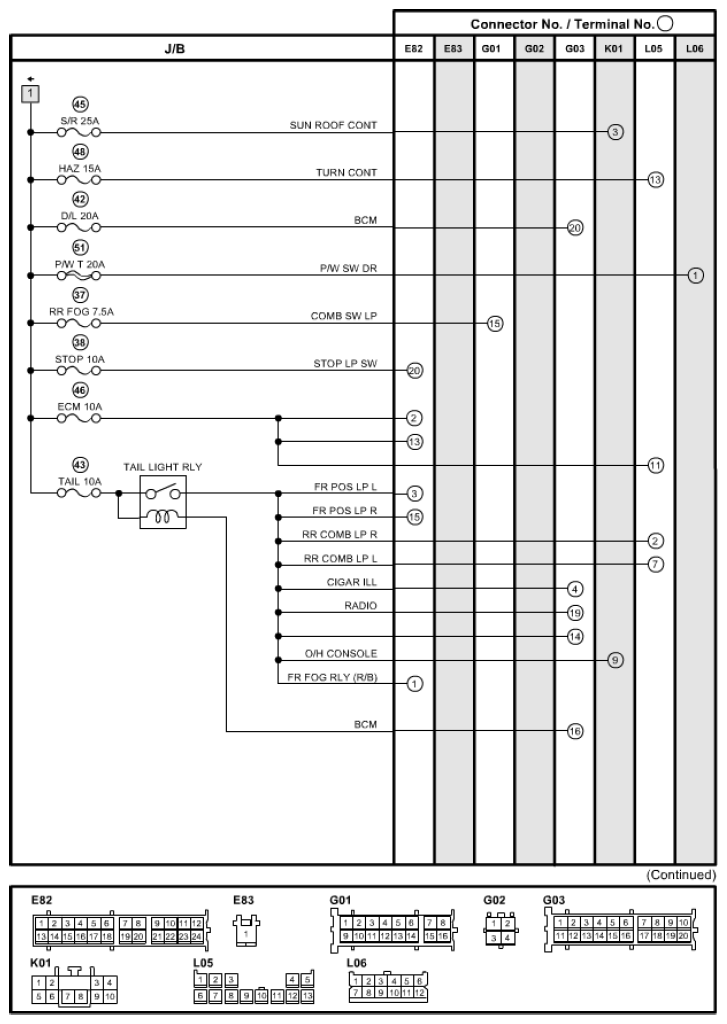

Fig 1: J/B Inner Circuit Diagram (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

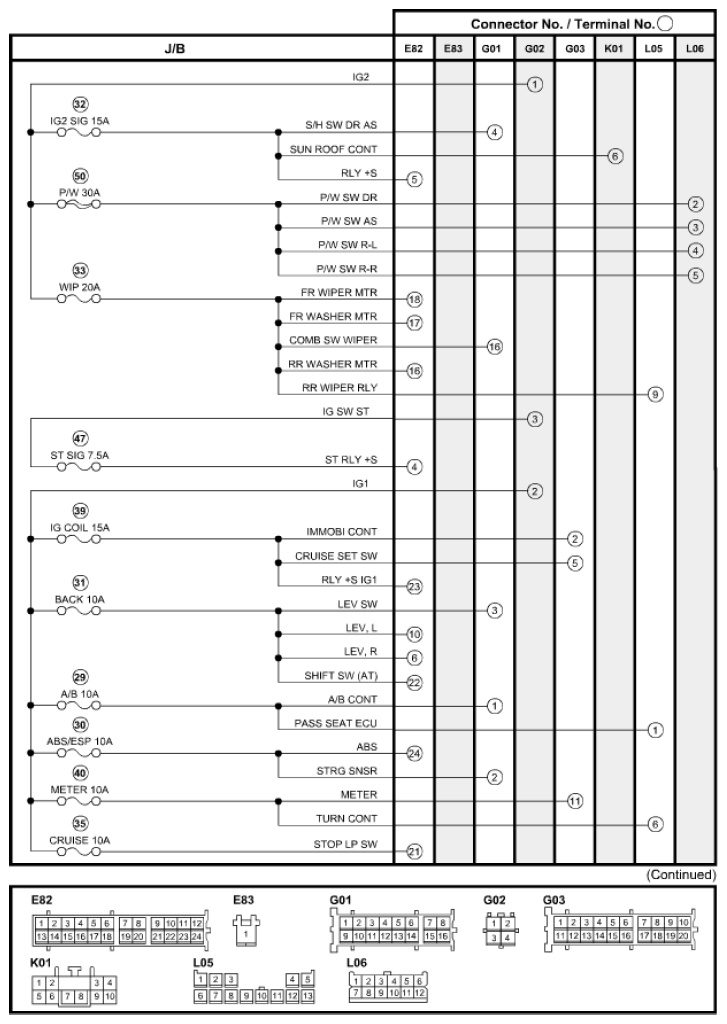

Fig 2: J/B Inner Circuit Diagram (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

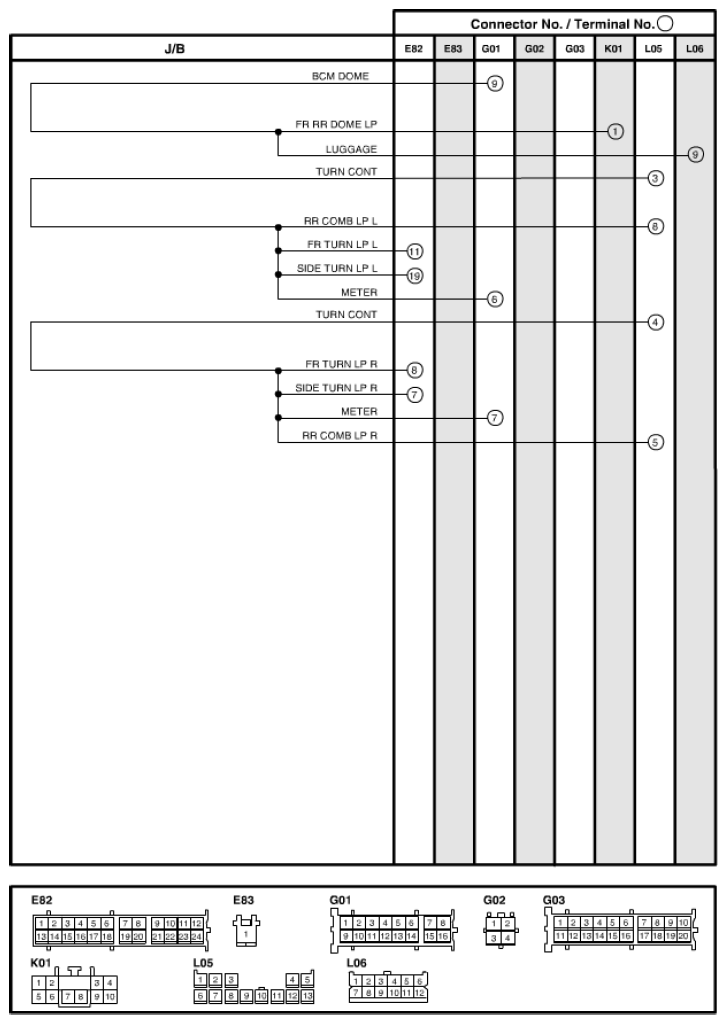

Fig 3: J/B Inner Circuit Diagram (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

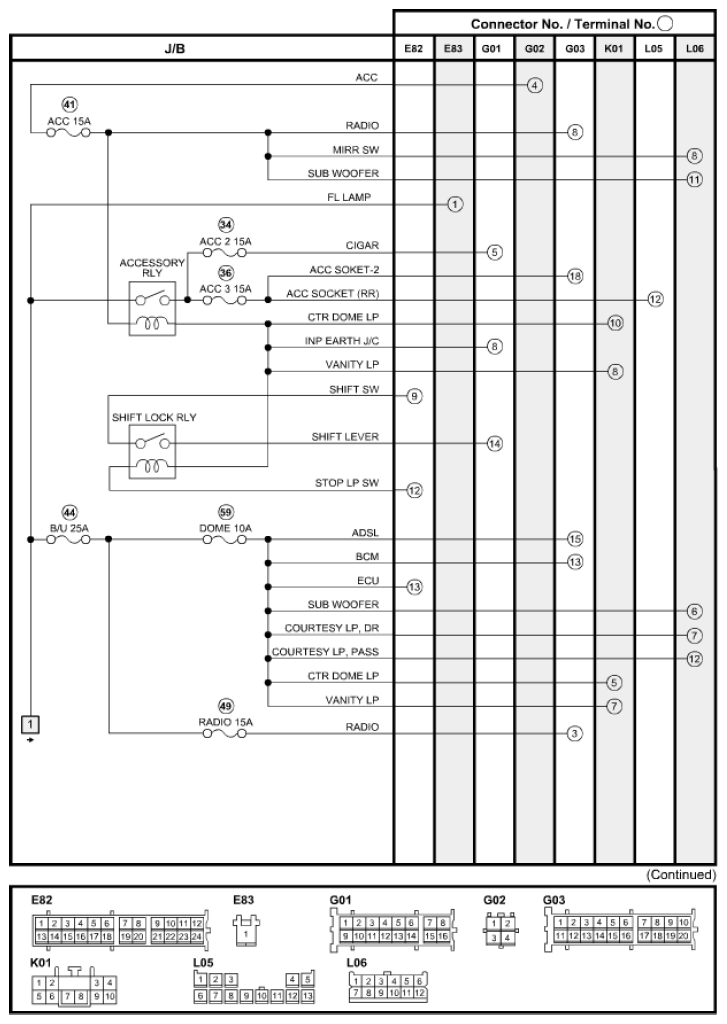

Fig 4: J/B Inner Circuit Diagram (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
