Rear Differential Components

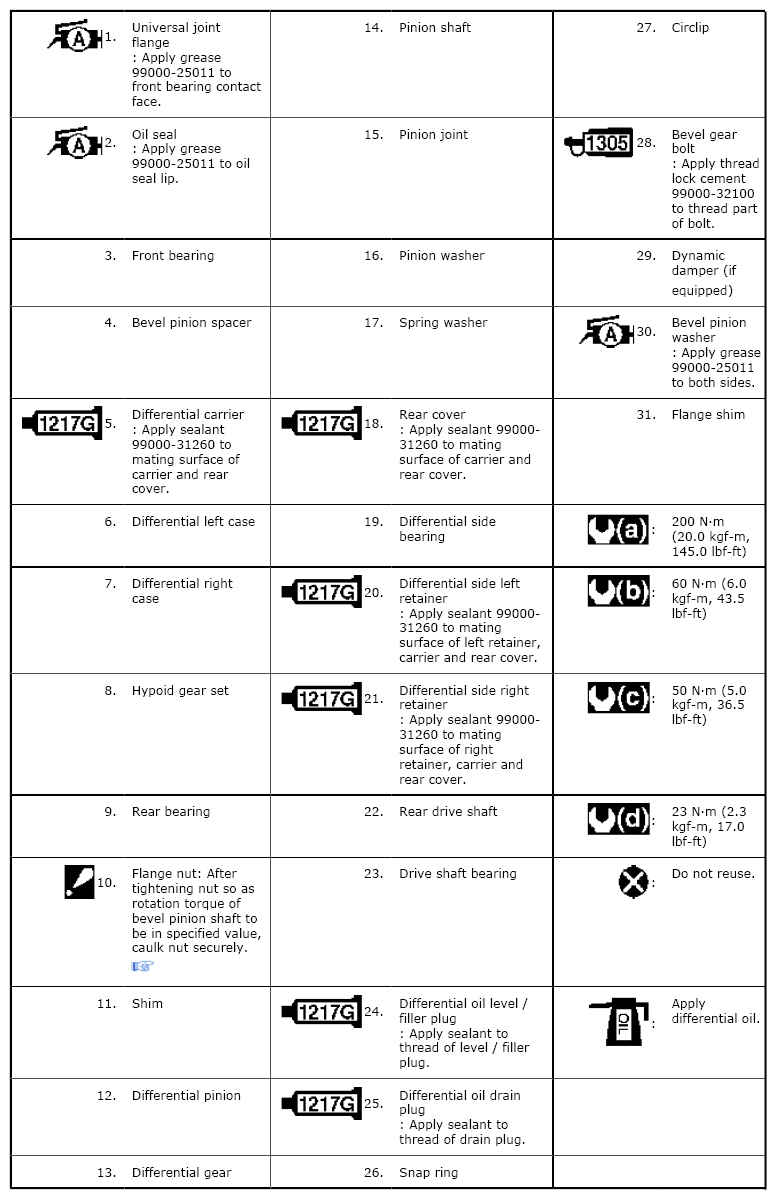

Fig 1: Disassembled View Of Rear Differential (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

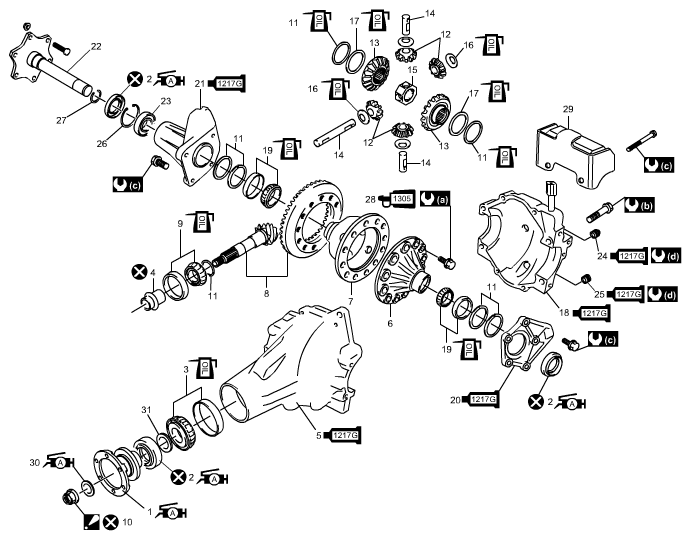

Fig 2: Disassembled View Of Rear Differential (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
