Rear Differential Assembly Disassembly and Reassembly: Disassembly

  1. Drive out rear drive shaft using special tools.

    Special Tool

    (A): 09942-15511

    (B): 09943-17912

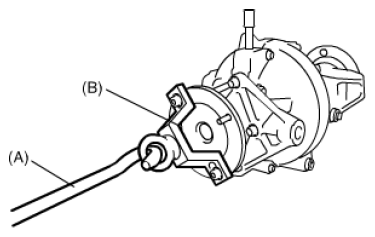

    Fig 1: Removing Rear Drive Shaft Using Special Tools
    G08894117Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove rear drive right and left retainers.
  3. Tapping rear cover flanges with plastic hammer, remove rear cover (1) and dynamic damper (if equipped).
    Fig 2: Identifying Rear Cover
    G08894118Courtesy of SUZUKI OF AMERICA CORP.
  4. Disassembly rear drive right retainer as follows, if necessary.
    1. Remove oil seal (1) using special tool.

      Special Tool

      (A): 09913-50121

      Fig 3: Removing Oil Seal Using Special Tool
      G08894119Courtesy of SUZUKI OF AMERICA CORP.
    2. Remove snap ring.
      Fig 4: Removing Snap Ring
      G08894120Courtesy of SUZUKI OF AMERICA CORP.
    3. Drive out rear drive shaft bearing using special tools.

      Special Tool

      (A): 09930-30104

      (B): 09941-64511

      Fig 5: Removing Rear Drive Shaft Bearing Using Special Tools
      G08894121Courtesy of SUZUKI OF AMERICA CORP.
  5. Support differential side left retainer (1) with soft jawed vise and remove oil seal (2) from differential side left retainer using special tool, if necessary.

    Special Tool

    (A): 09913-50121

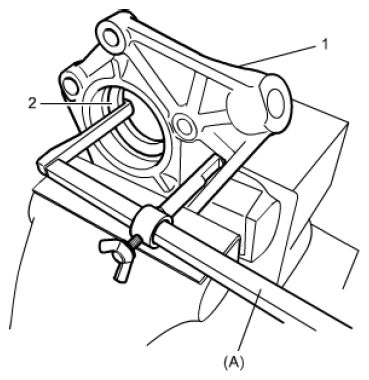

    Fig 6: Removing Oil Seal From Differential Side Left Retainer Using Special Tool
    G08894122Courtesy of SUZUKI OF AMERICA CORP.
  6. Take out differential assembly (1), outer race and shim all at once.
    Fig 7: Identifying Differential Assembly
    G08894123Courtesy of SUZUKI OF AMERICA CORP.
  7. Pull out differential side bearing (1) using special tools.

    Special Tool

    (A): 09913-65135

    (B): 09925-86010

    Fig 8: Pulling Out Differential Side Bearing Using Special Tools
    G08894124Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove drive bevel gear (hypoid gear), differential gears, differential pinions and pinion shaft as follows.
    1. With aluminum plates (2) placed on vise first, grip differential case with it and remove drive bevel gear (hypoid gear) (3) by removing its bolts (1).

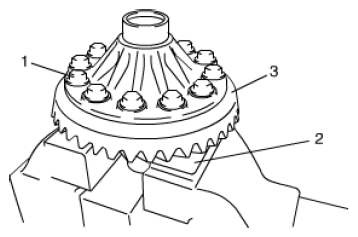

      Fig 9: Removing Drive Bevel Gear (Hypoid Gear)
      G08894125Courtesy of SUZUKI OF AMERICA CORP.
    2. Remove pinion shafts (1), differential gears, washers, differential pinions, spring washers, thrust washers and pinion joint.
      Fig 10: Identifying Pinion Shafts
      G08894126Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove drive bevel pinion (hypoid gear) assembly as follows.
    1. Hold joint flange (1) with special tool and then remove flange nut and bevel pinion washer.

      Special Tool

      (A): 09930-40113

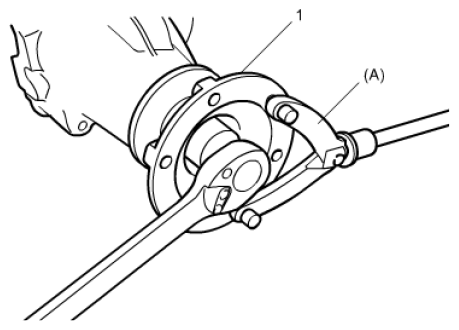

      Fig 11: Removing Flange Nut And Bevel Pinion Washer
      G08894127Courtesy of SUZUKI OF AMERICA CORP.
    2. Make mating marks (1) on drive bevel pinion and companion flange.
      NOTE: Do not make mating mark on the coupling surface of the flange.
    3. Remove flange (2) and flange shim from drive bevel pinion. Use special tool if it is hard to remove.

      Special Tool

      (A): 09913-65135

      (B): 09925-88210

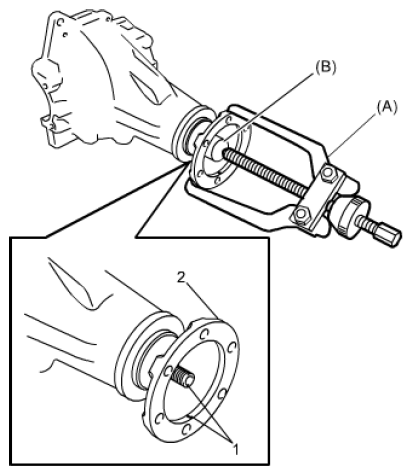

      Fig 12: Removing Flange And Flange Shim From Drive Bevel Pinion
      G08894128Courtesy of SUZUKI OF AMERICA CORP.
    4. Remove drive bevel pinion (1) with rear bearing, shim and spacer from carrier.

      If it is hard to remove, screw an used nut (2) into drive bevel pinion and hammer (3) on that nut with a plastic hammer but never directly on drive bevel pinion.

      Fig 13: Removing Drive Bevel Pinion With Rear Bearing, Shim And Spacer From Carrier
      G08894129Courtesy of SUZUKI OF AMERICA CORP.
    5. Remove drive bevel pinion rear bearing (2) by using bearing puller (3) and hydraulic press.
      NOTE: If the rear bearing is supported on the concave side of the bearing puller, the rear bearing may be damaged.
      Be sure to support the rear bearing on the flat side of the bearing puller.

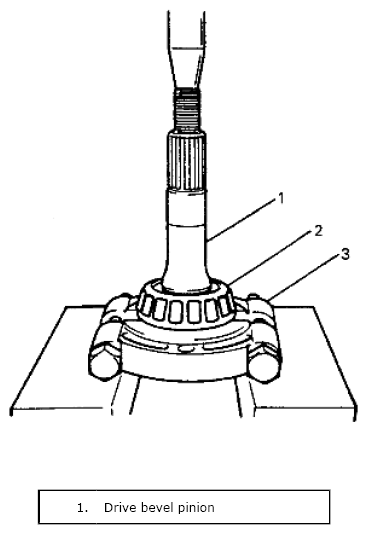

      Fig 14: Removing Drive Bevel Pinion Rear Bearing Using Bearing Puller And Hydraulic Press
      G08894130Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove oil seal (1) using special tool.

    Special Tool

    (A): 09913-50121

    Fig 15: Removing Oil Seal Using Special Tool
    G08894131Courtesy of SUZUKI OF AMERICA CORP.
  11. Using a hammer and brass bar (1), drive out front bearing outer race (2).
    Fig 16: Removing Front Bearing Outer Race Using Hammer And Brass Bar
    G08894132Courtesy of SUZUKI OF AMERICA CORP.
  12. Drive out rear bearing outer race (1) in the same manner as Step  11).
    Fig 17: Removing Rear Bearing Outer Race
    G08894133Courtesy of SUZUKI OF AMERICA CORP.
