ESP® OFF Switch Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove center garnish (1) with audio unit (if equipped), HVAC control module and ESP® OFF switch. Refer to AUDIO UNIT REMOVAL AND INSTALLATION .

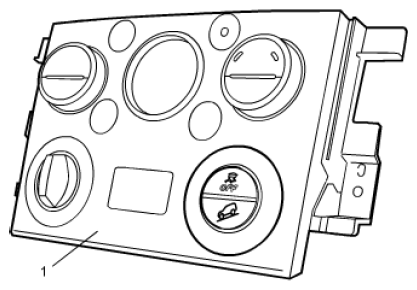

    Fig 1: Identifying Center Garnish
    G08895839Courtesy of SUZUKI OF AMERICA CORP.
