ESP® Warning Light Does Not Come ON at Ignition Switch ON: Wiring Diagram

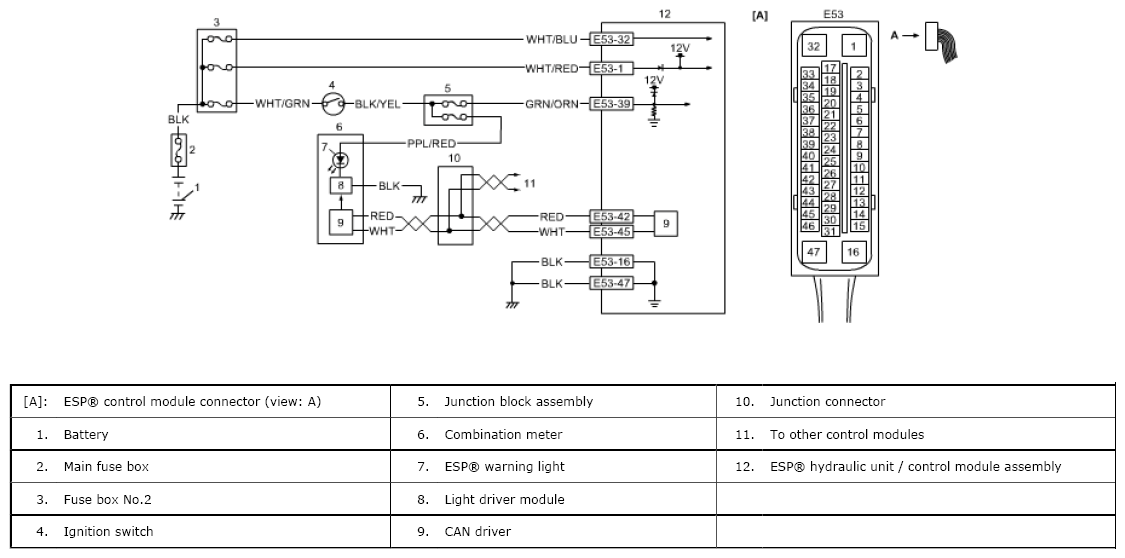

Fig 1: ESP® Hydraulic Unit/Control Module Assembly - Wiring Diagram (Warning Light Does Not Come ON At Ignition Switch ON)

Courtesy of SUZUKI OF AMERICA CORP.
