DTC C1073: Lost Communication with Yaw Rate/G Sensor Assembly: Wiring Diagram

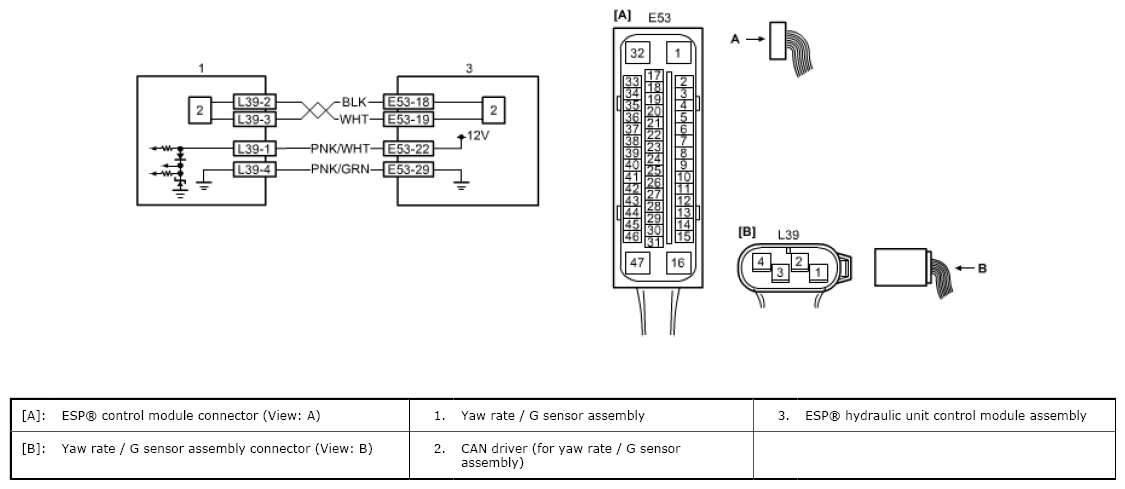

Fig 1: Yaw Rate/G Sensor Assembly And ESP® Hydraulic Unit Control Module Assembly - Wiring Diagram
G08895820Courtesy of SUZUKI OF AMERICA CORP.
