DTC C1065: Brake Light Relay Circuit Failure: Wiring Diagram

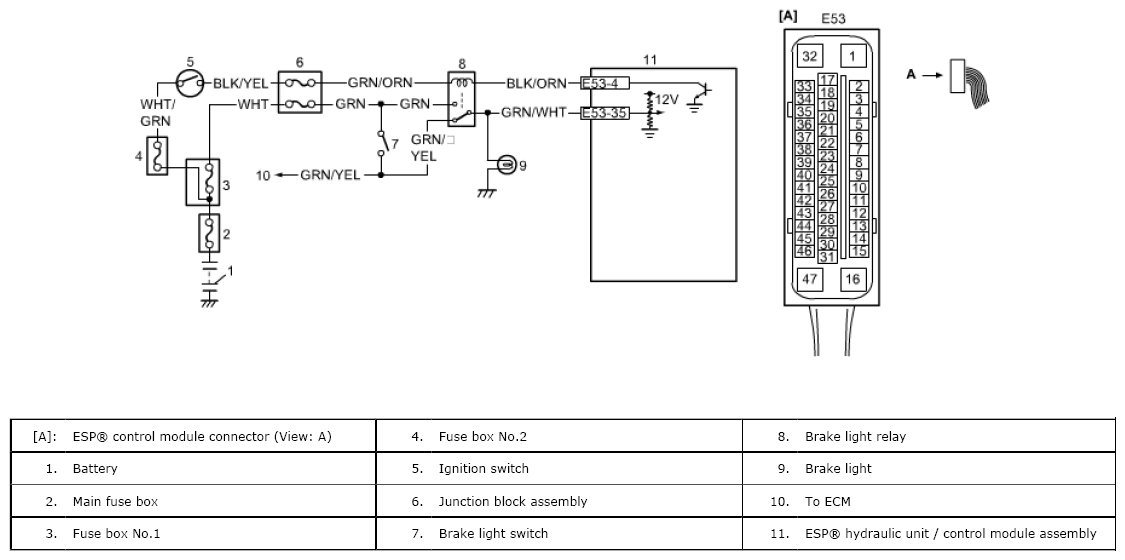

Fig 1: ESP® Hydraulic Unit/Control Module Assembly - Wiring Diagram (Brake Light Relay Circuit Failure)
G08895819Courtesy of SUZUKI OF AMERICA CORP.
