DTC C1037: Steering Angle Sensor Power Supply Failure: Wiring Diagram

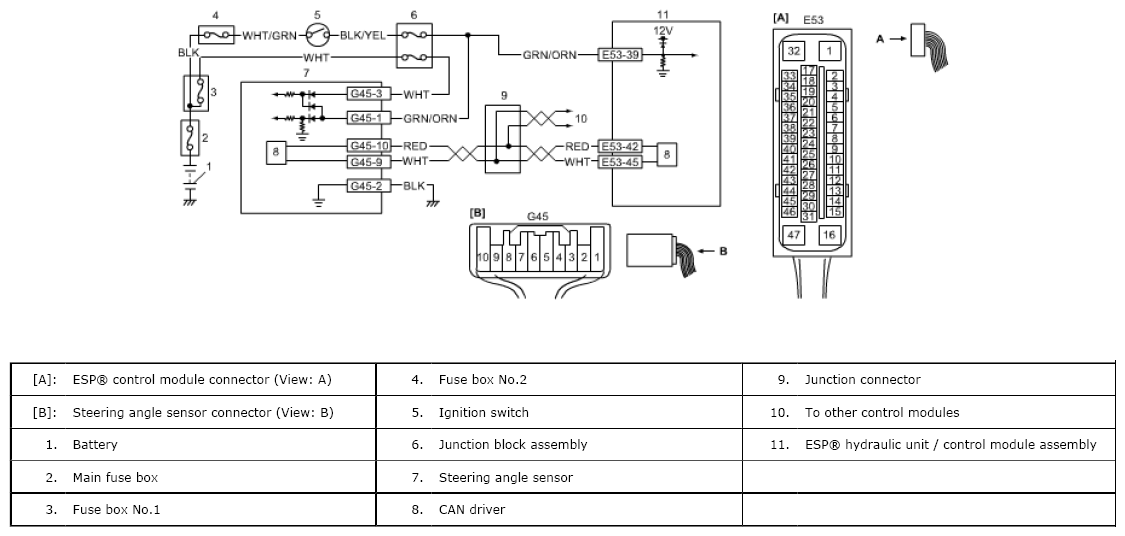

Fig 1: ESP® Hydraulic Unit/Control Module Assembly - Wiring Diagram (Steering Angle Sensor Power Supply Failure)
G08895818Courtesy of SUZUKI OF AMERICA CORP.
