DTC C1027: ESP® OFF Switch Circuit Failure: Wiring Diagram

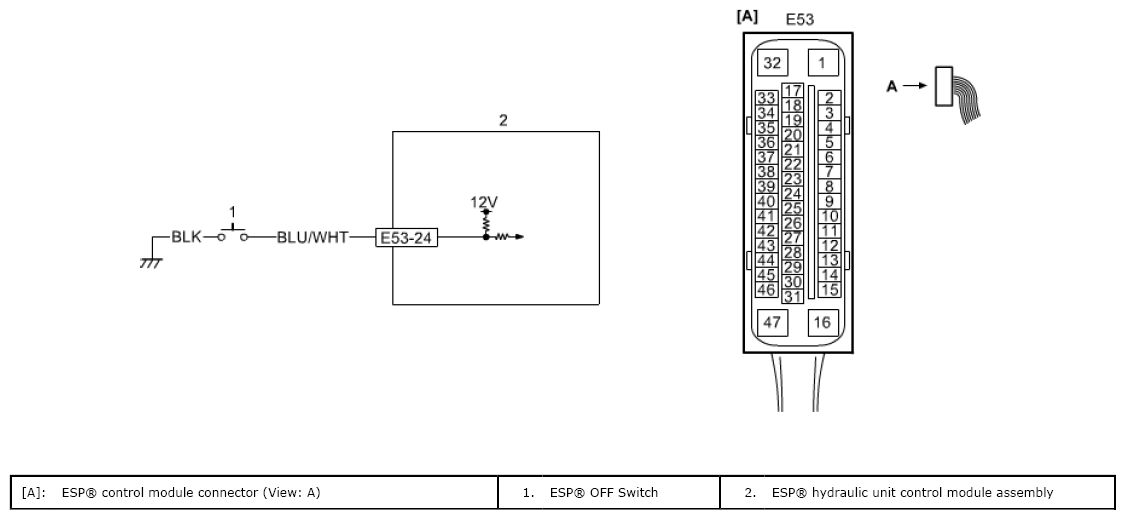

Fig 1: ESP® Hydraulic Unit/Control Module Assembly - Wiring Diagram (ESP® OFF Switch Circuit Failure)
G08895816Courtesy of SUZUKI OF AMERICA CORP.
