DTC C1063: Solenoid Valve Power Supply Driver Circuit Failure: Notes

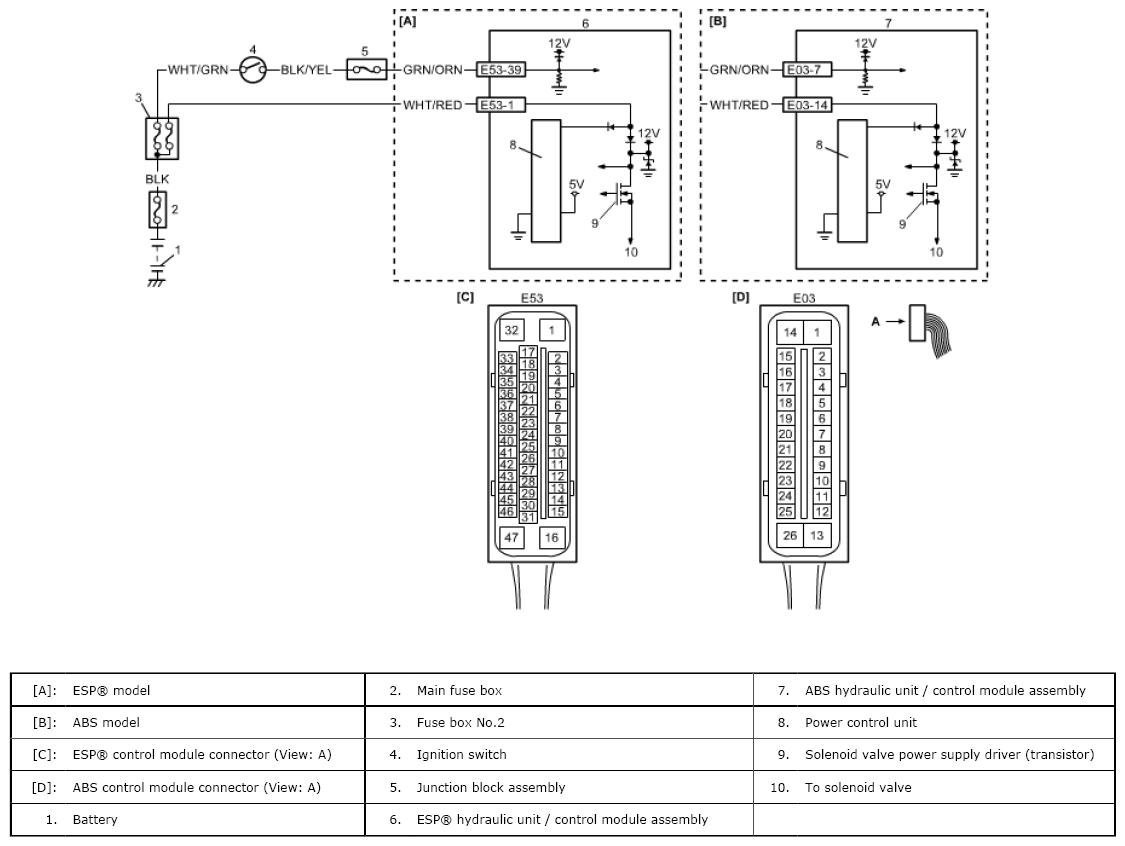

Fig 1: Solenoid Valve Power Supply Driver Circuit - Wiring Diagram
G08894404Courtesy of SUZUKI OF AMERICA CORP.
