Parking Brake Components

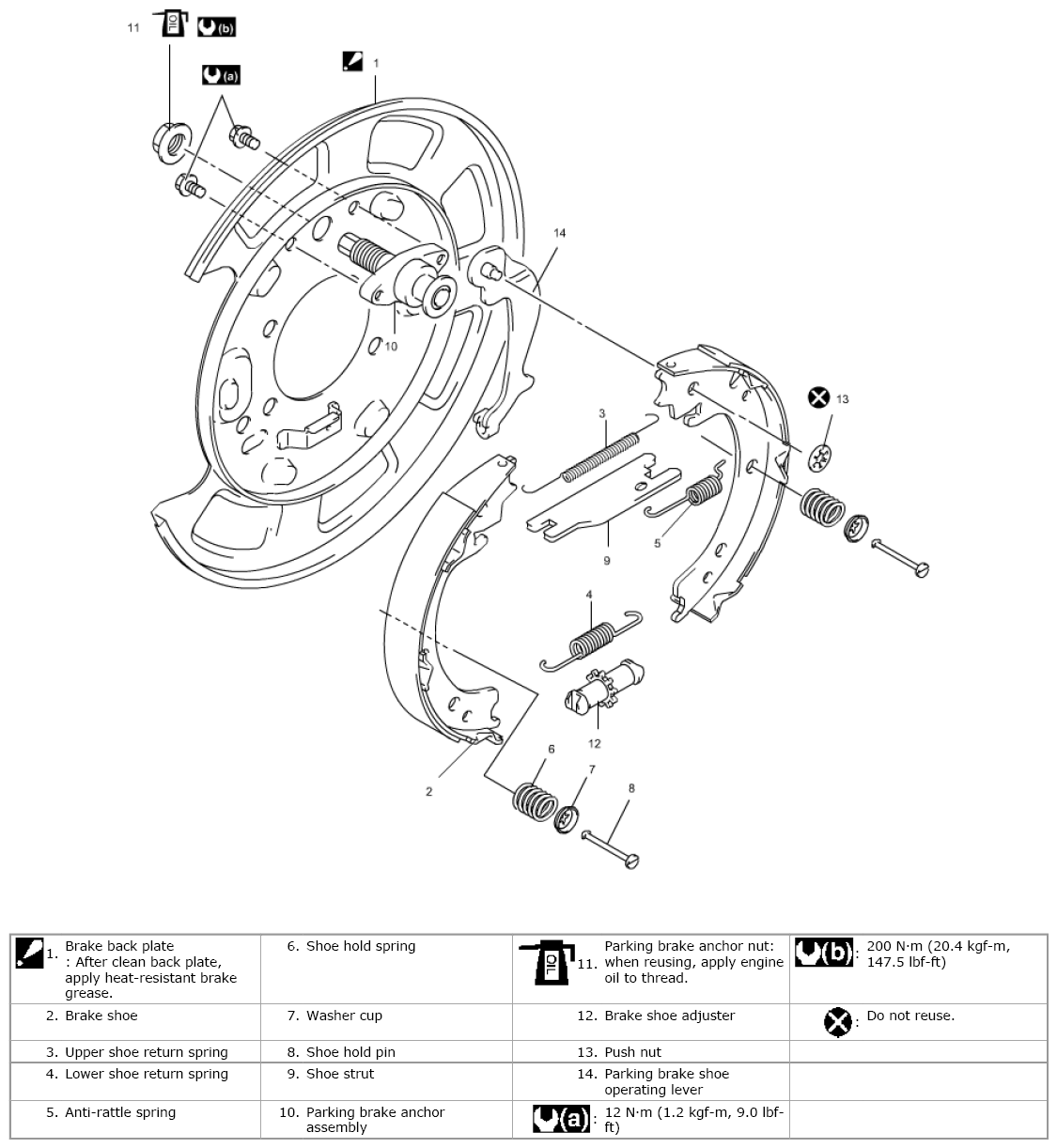

Fig 1: Identifying Parking Brake Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
