Master Cylinder Components

NOTE: The master cylinder and brake booster will lose their original performance if they are disassembled and reassembled.
If any faulty condition is found with the master cylinder or brake booster, replace the part rather than trying to disassemble and repair it.

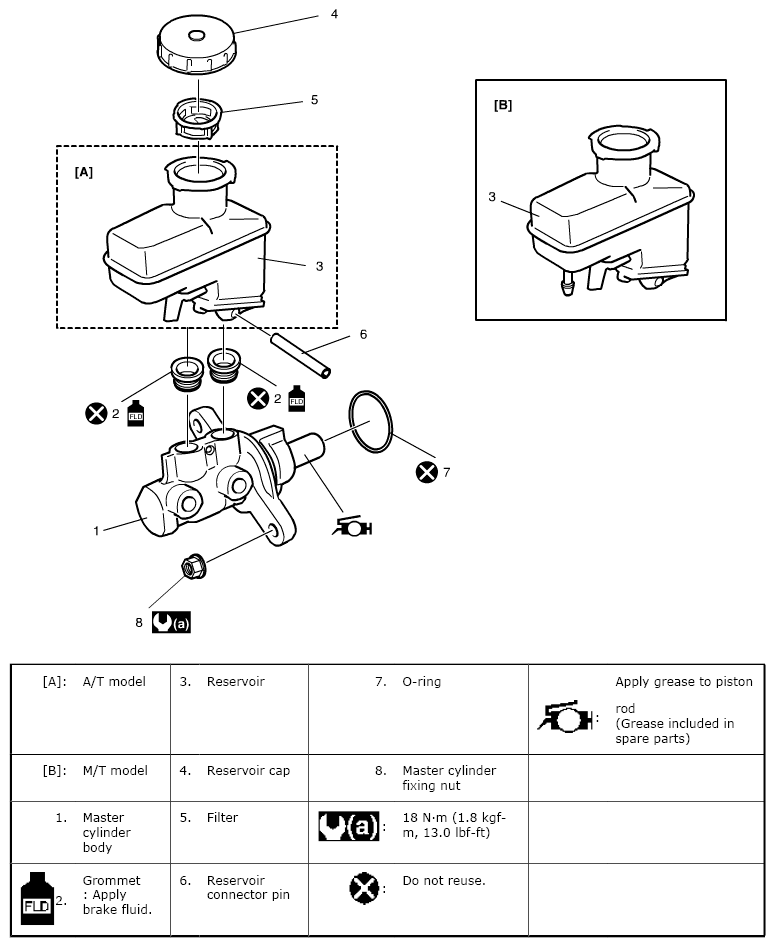

Fig 1: Identifying Master Cylinder Components
G08895710Courtesy of SUZUKI OF AMERICA CORP.
