Sun Roof Switch Inspection

Check switch for continuity between terminals as shown below.

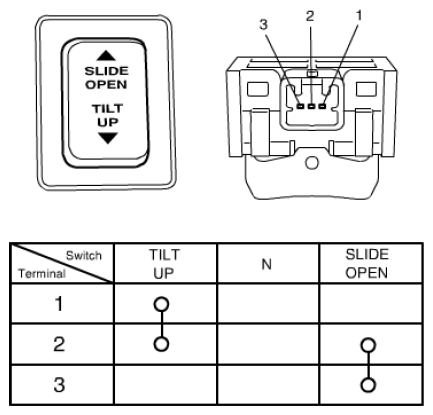

Fig 1: Identifying Sun Roof Switch Connector Terminals
G08899664Courtesy of SUZUKI OF AMERICA CORP.
