Sun Roof Assembly Disassembly and Reassembly: Reassembly
Reverse disassembly procedure for reassembly, noting the following.
- Check wear and damage of drive cables and sun roof motor gear.
- Apply grease to sliding part.

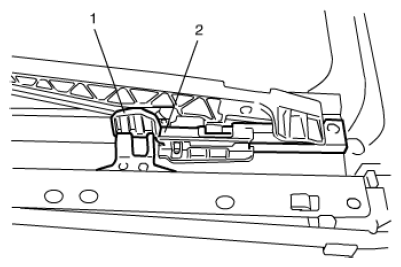

- Slide shoes (1) to contact guide blocks (2) for positioning the sun roof to tilt up position and install sun roof motor.
