Sun Roof Assembly Disassembly and Reassembly: Disassembly

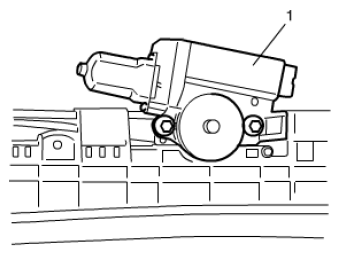

Remove sun roof motor (1).

Fig 1: Identifying Sun Roof Motor
Courtesy of SUZUKI OF AMERICA CORP.

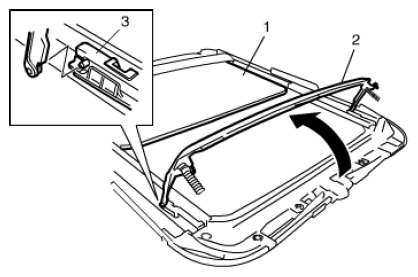

Slide sunshade (1) to full-position.
Remove deflector (2) from holder (3) with holding deflector.

Fig 2: Removing Deflector From Holder
Courtesy of SUZUKI OF AMERICA CORP.

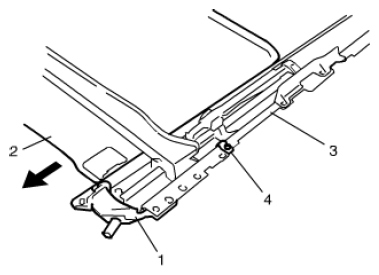

Remove No. 1 pieces (1) and then pull out sunshade (2) from guide rails (3).
Remove rail stoppers (4) from guide rails.

Fig 3: Pulling Out Sunshade From Guide Rails
Courtesy of SUZUKI OF AMERICA CORP.

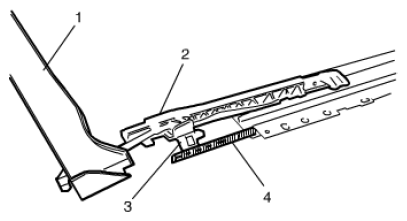

Pull out drip channel (1), panel brackets (2), shoes (3) and drive cables (4) all together from guide rails.

Fig 4: Identifying Drip Channel, Panel Brackets, Shoes And Drive Cables
Courtesy of SUZUKI OF AMERICA CORP.
Disassemble drip channel, panel brackets, shoes and drive cables.

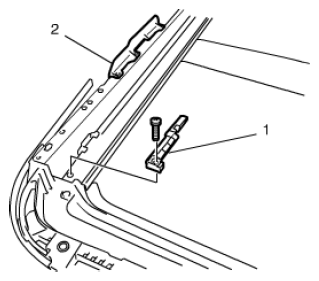

Remove guide block (1) and housing covers (2) from rails.

Fig 5: Identifying Guide Block And Housing Covers
Courtesy of SUZUKI OF AMERICA CORP.
