Power Door Mirror Actuator Inspection (If Equipped)
- Remove door trim referring to step 1) to 3) of Front Door Glass Removal and Installation .
- Disconnect door mirror connector (1).
- Check that door mirror operates properly when battery voltage is applied to connector terminals.

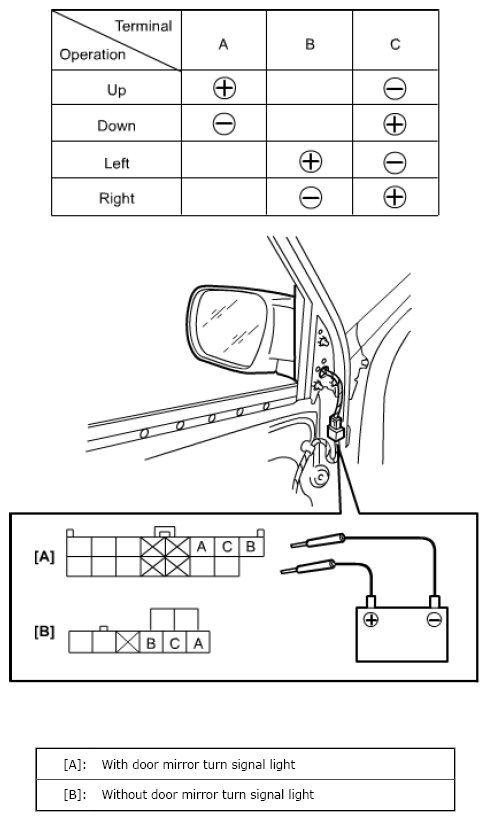

- Connect battery positive (+) and negative (-) terminal to the door mirror terminals as shown.
If it does not follow the table's operation, replace door mirror assembly.
