Splash Guard Components (If Equipped)

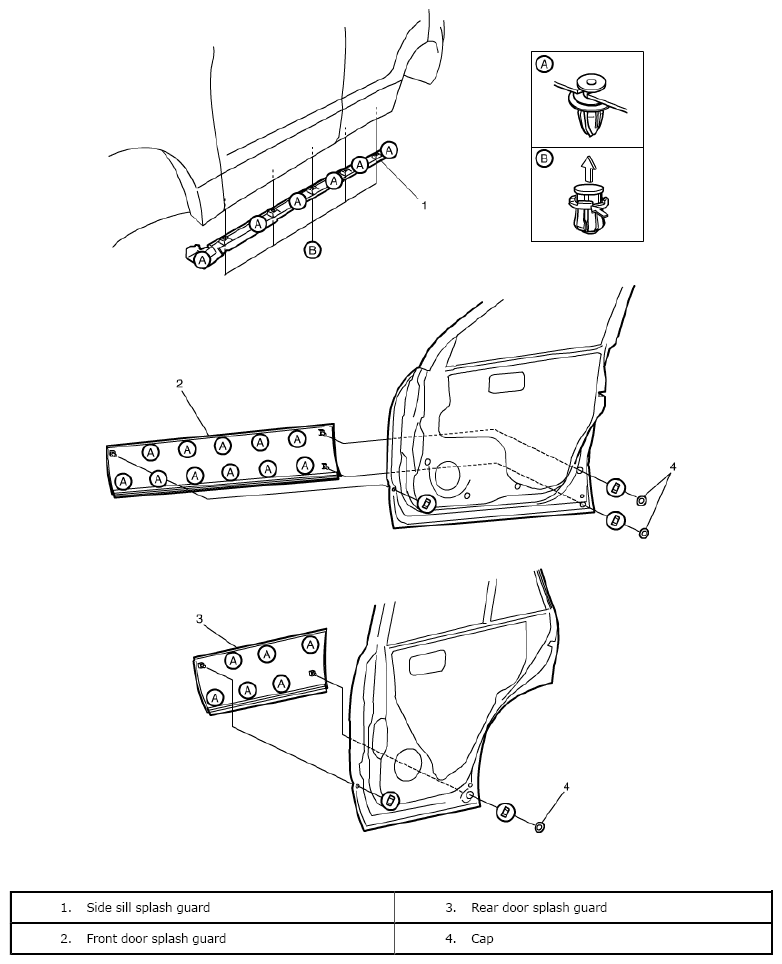

Fig 1: Identifying Splash Guard Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
