Door Key Cylinder Switch Inspection
- Remove front door trim referring to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .

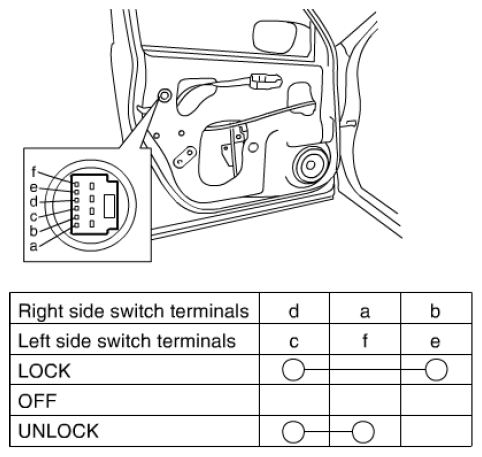

- Check for continuity between terminals at each switch position. If check result is not as specified, replace door lock assembly.
