Keyless Start System Electric Wiring Circuit Diagram

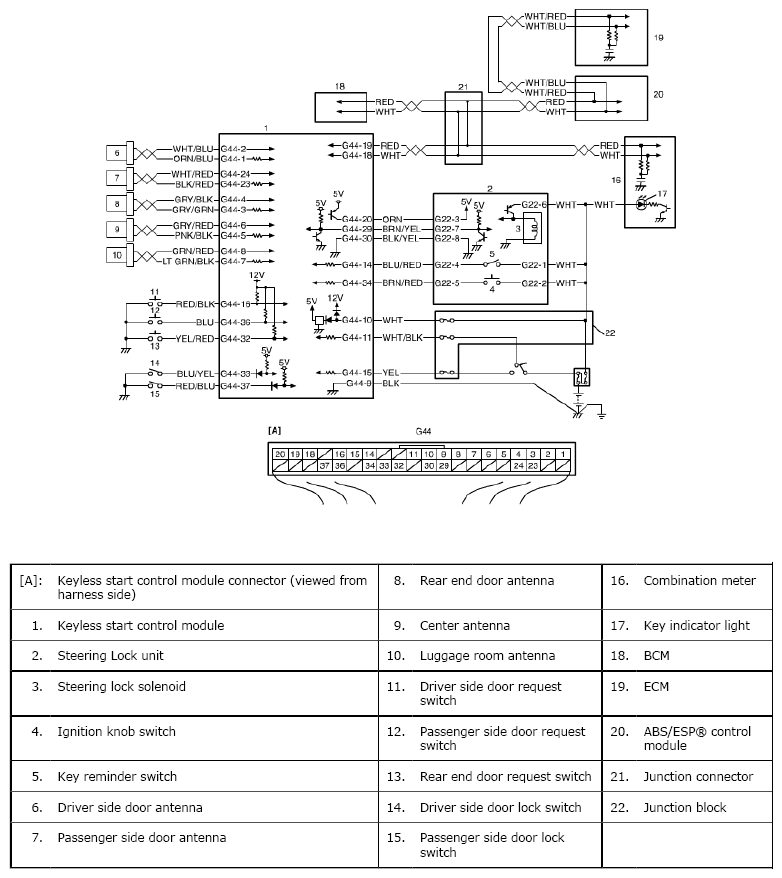

Fig 1: Keyless Start System Door Lock Function Schematic
G08899771Courtesy of SUZUKI OF AMERICA CORP.
