Front Door (Driver and Passenger Side), Rear End Door Request Switch Inspection

Remove door trim from door panel.
For front door trim, refer to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .

For rear end door trim, refer to Step 1) of REAR END DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION .
Check for continuity between terminals "1" and "2" at each switch position as shown below. If check result is not as specified, replace.
Request switch (1) specification

ON position (request switch pushed): Continuity

OFF position (request switch released): No continuity

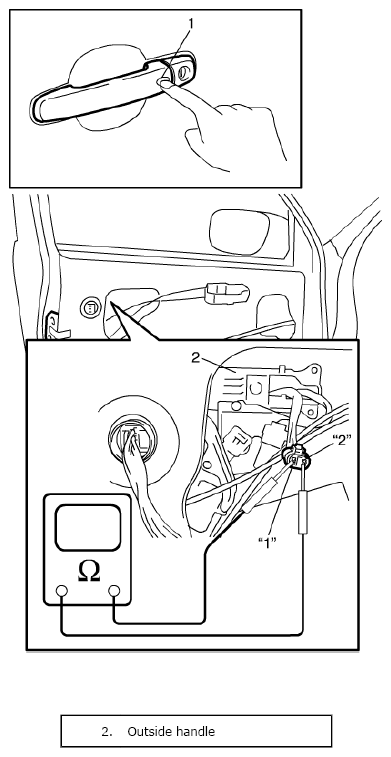

Fig 1: Checking For Continuity Between Terminals 1 And 2 At Each Switch Position
Courtesy of SUZUKI OF AMERICA CORP.
