DTC Check

NOTE: To know how to use SUZUKI scan tool in detail, refer to its operator's manual.

Turn ignition switch to OFF position.
Connect SUZUKI scan tool to DLC (1) located under instrument panel at driver's seat side.
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)

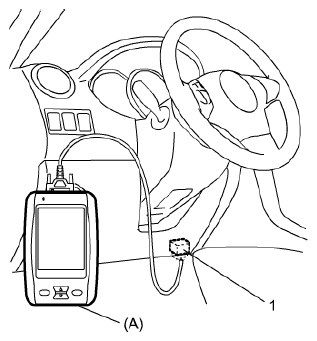

Fig 1: Checking Data Link Connector Using Scan Tool
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition switch to ON position.
Check if any DTC is stored in ECM according to the instructions displayed on SUZUKI scan tool.
After completing the check, turn ignition switch to OFF position, and then disconnect SUZUKI scan tool from DLC.
