Rear Wiper Removal and Installation: Installation

Install rear wiper motor (1) and tighten rear wiper motor mounting bolts to specified torque.
Tightening torque

Rear wiper motor mounting bolt (a): 7 N.m (0.7 kgf-m, 5.0 lbf-ft)

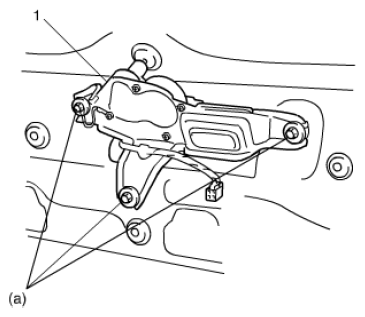

Fig 1: Rear Wiper Motor And Mounting Nut With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Connect coupler to rear wiper motor.
Install rear end door trim referring to REAR END DOOR ASSEMBLY COMPONENTS .
Install rear wiper arm with blade assembly (1) to specified position as shown in figure.

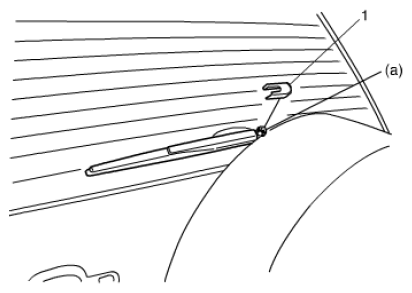

Fig 2: Identifying Rear Wiper Arm With Blade Assembly Installation Position
Courtesy of SUZUKI OF AMERICA CORP.
Tighten rear wiper arm nut to specified torque, and then install arm cover (1).
Tightening torque

Rear wiper arm nut (a): 8 N.m (0.8 kgf-m, 6.0 lbf-ft)

Fig 3: Arm Cover And Rear Wiper Arm Nut With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative (-) cable to battery.
