Headlight Washer Switch Inspection (If Equipped)

Check for continuity between terminals at each switch position.

If check result is not as specified, replace switch.

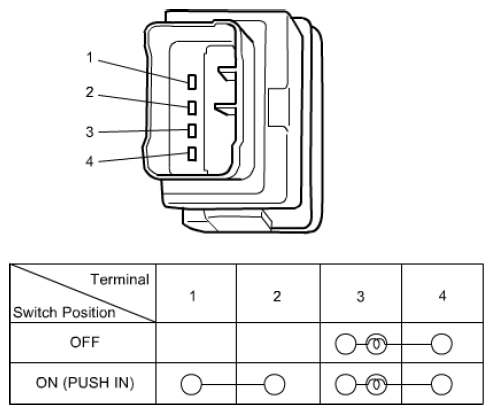

Fig 1: Headlight Washer Switch Continuity Reference Chart

Courtesy of SUZUKI OF AMERICA CORP.
