Circuit Diagram

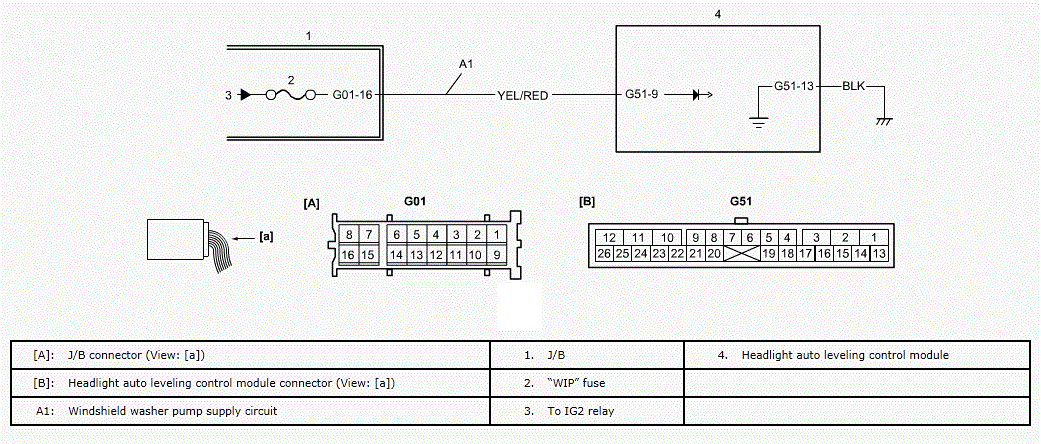

Fig 1: Headlight Auto Leveling Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
