Headlight Auto Leveling Control Module Circuit Diagram

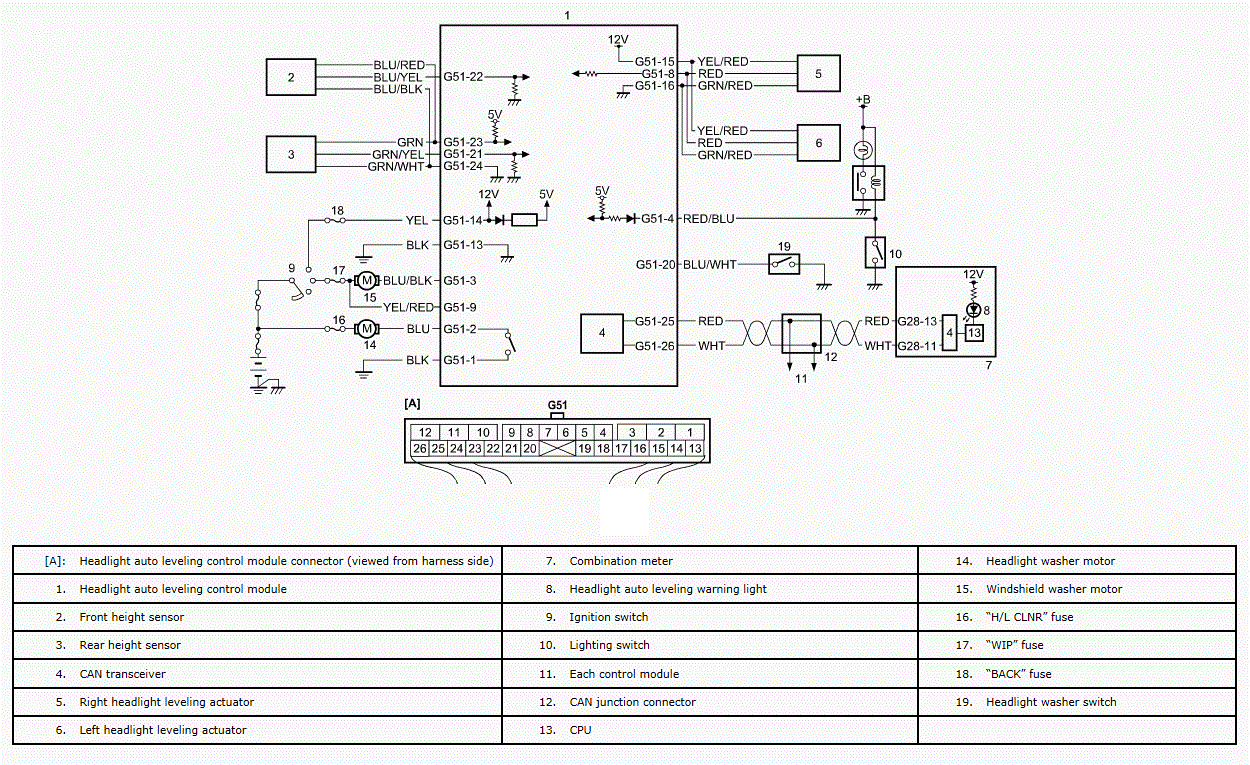

Fig 1: Headlight Auto Leveling Control Module - Circuit Diagram
G00538158Courtesy of SUZUKI OF AMERICA CORP.
