Headlight Auto Leveling Control Module Removal and Installation (If Equipped): Removal

  1. Disconnect negative (-) cable at battery.
  2. Disconnect connector (1) from headlight auto leveling control module (2).
  3. Remove headlight auto leveling control module with its bracket from heater unit (3).

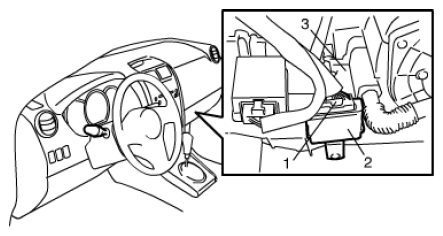

    Fig 1: Identifying Headlight Auto Leveling Control Module, Heater Unit Bracket And Connector
    G08899511Courtesy of SUZUKI OF AMERICA CORP.
