Brake Light Switch On-Vehicle Inspection

Check brake light switch for continuity between terminals at each switch position.

If check result is not as specified, replace switch.

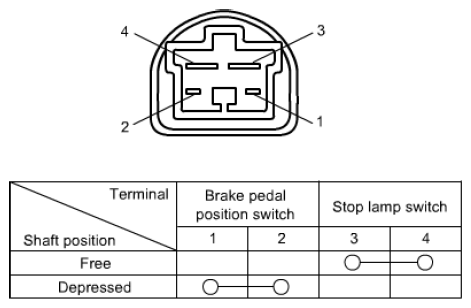

Fig 1: Brake Light Switch Continuity Reference Chart

Courtesy of SUZUKI OF AMERICA CORP.
