Front and Rear Height Sensor

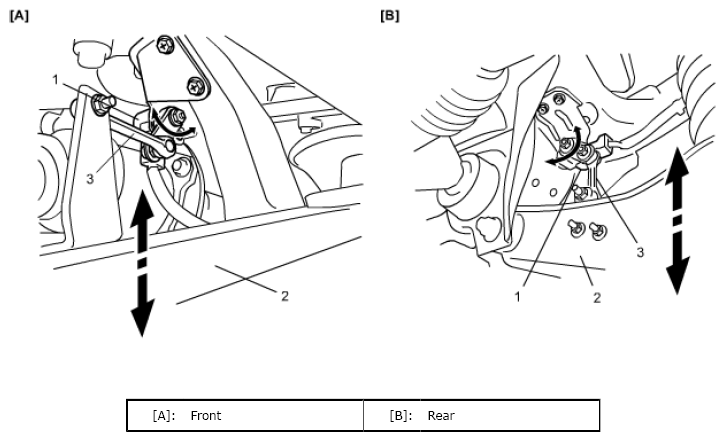

Height sensor (1) is installed to the front and rear suspension frames respectively and connected to the lower arm (2) with the link (3). Each height sensor converts vertical movement of the lower arm into the resistance value and outputs the detected change in the vehicle position as a voltage signal to the headlight auto leveling control module.
