For SET/COAST, RES/ACC and CANCEL Switch

Check for resistance between "7" and "9" terminals under each condition below.

If check result is not satisfactory, replace cruise control switch (2).

SET/COAST, RES/ACC and CANCEL switches resistance: [C]

All switches released (OFF): Infinity

CANCEL switch (4) pressed (ON): About 0 Ω

SET/COAST switch (5) pressed (ON): 218 - 222 Ω

RES/ACC switch (6) pressed (ON): 901 - 919 Ω

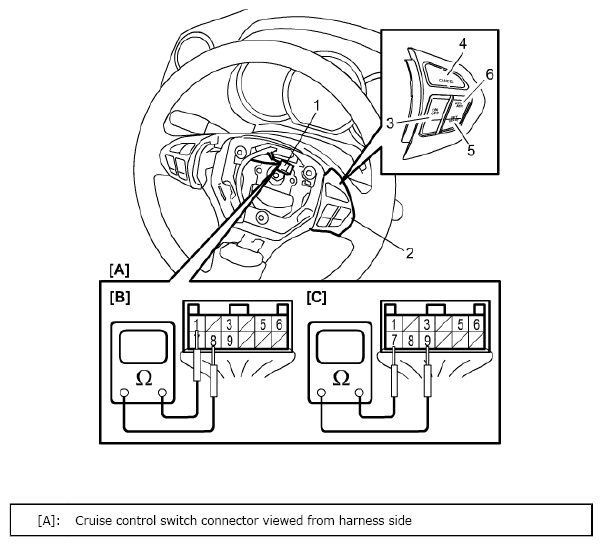

Fig 1: Checking Resistance Between Terminals 7 And 9 Of SET/COAST, RES/ACC And CANCEL Switch

Courtesy of SUZUKI OF AMERICA CORP.
