CAN Communication System Circuit Diagram

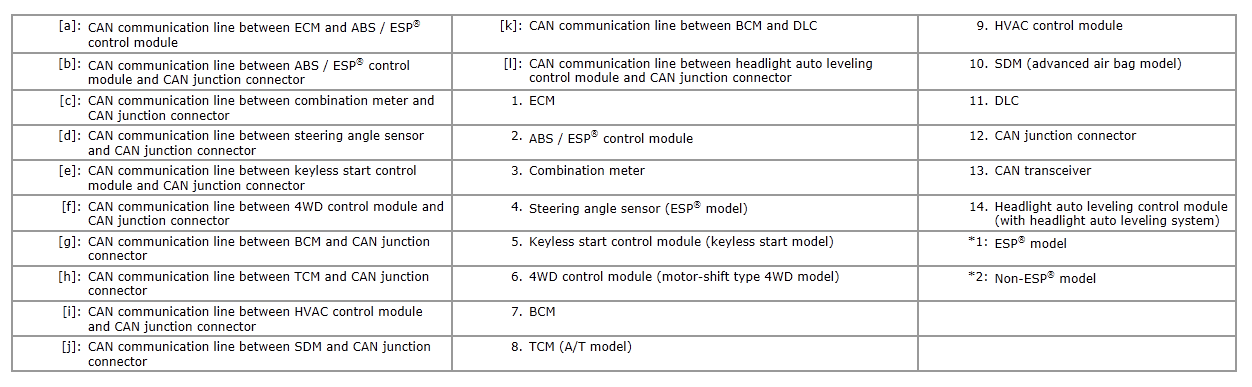

Fig 1: CAN Communication System - Circuit Diagram (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

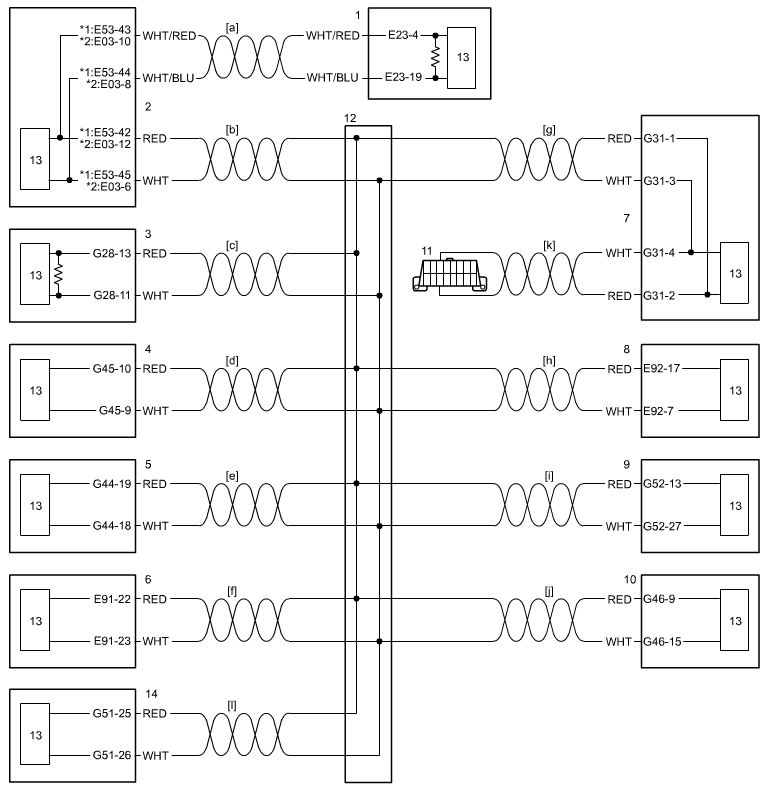

Fig 2: CAN Communication System - Circuit Diagram (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
