BCM Power Circuit and Ground Circuit Check: Wiring Diagram

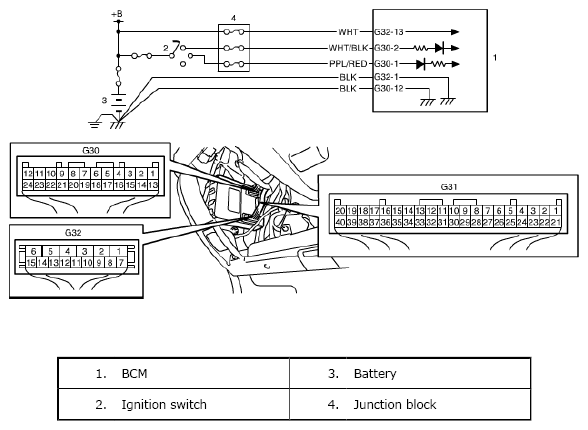

Fig 1: Body Control Module - Wiring Diagram
G08895020Courtesy of SUZUKI OF AMERICA CORP.
