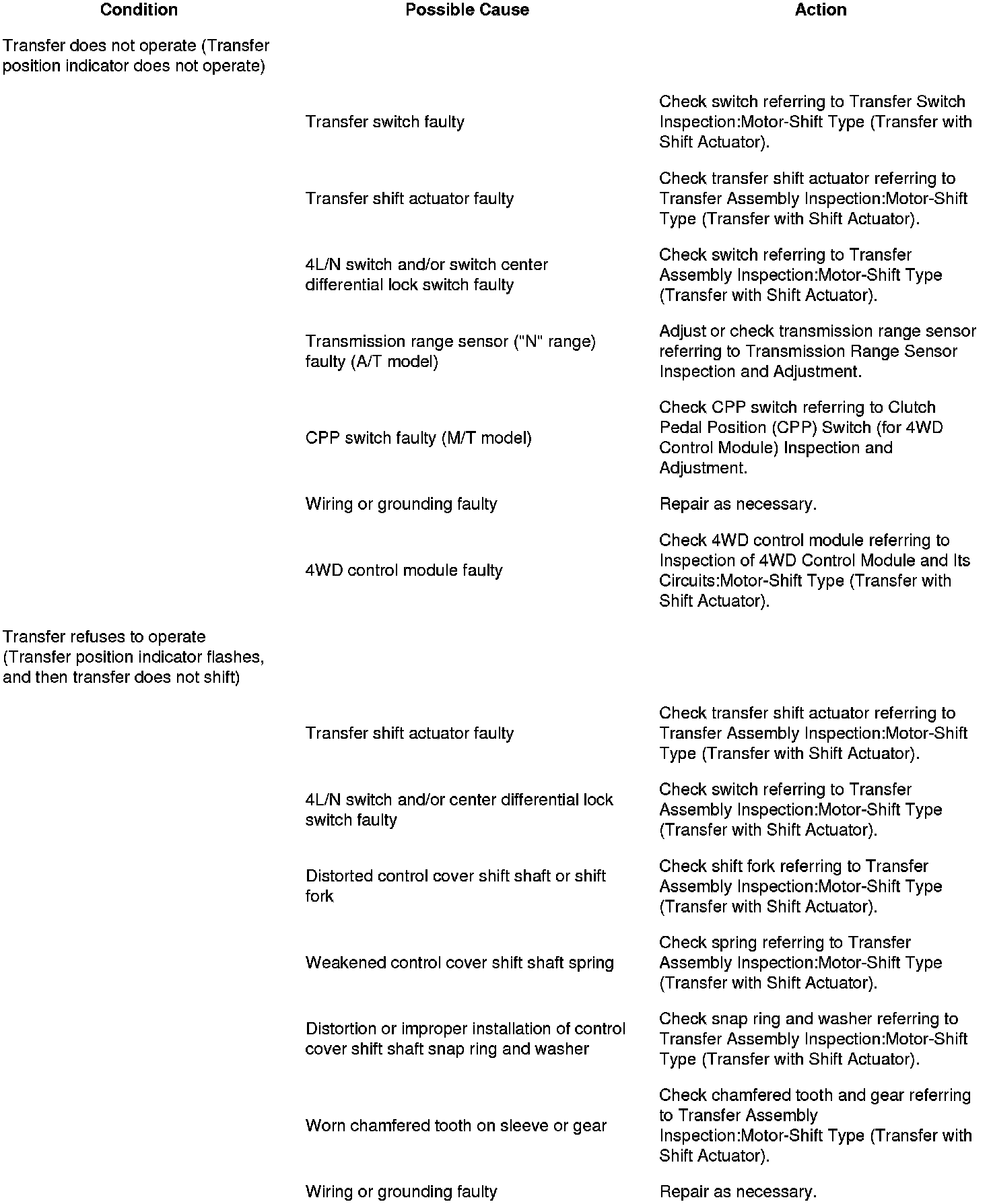

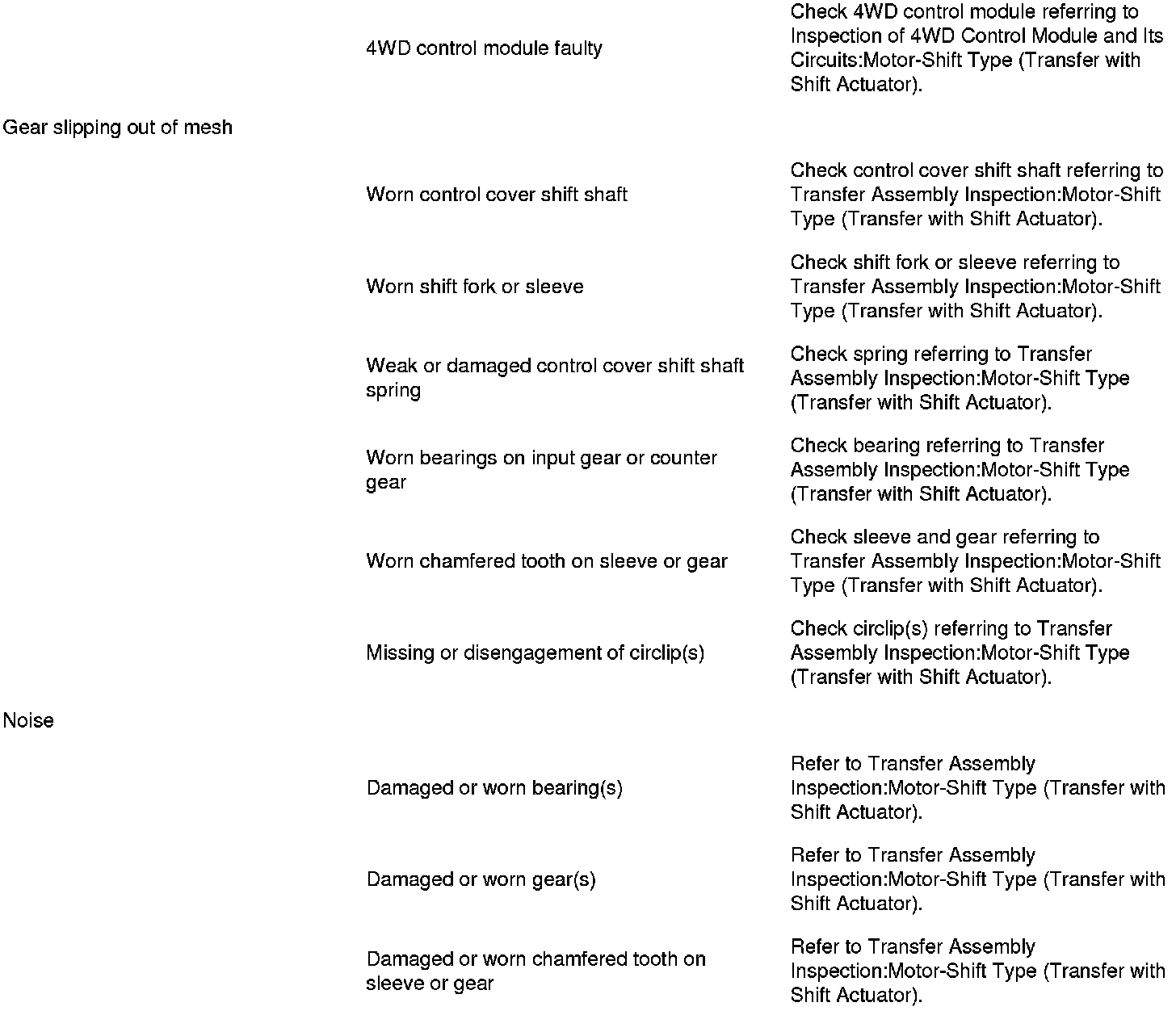

4WD Control Symptom Diagnosis

4WD Control Symptom Diagnosis

Diagnose transfer assembly after performing the following inspections.
1) Perform 4WD control system check referring to 4WD Control System Check 4WD Control System Check:Motor-Shift Type (Transfer with Shift Actuator).
2) Confirm 4WD control system operation referring to Description of 4WD Control System Operation Description of 4WD Control System Operation:Motor-Shift Type (Transfer with Shift Actuator)
