Center Differential Assembly Disassembly and Reassembly

Center Differential Assembly Disassembly and Reassembly

Transfer Assembly Disassembly and Reassembly:Motor-Shift Type (Transfer with Shift Actuator)

Disassembly

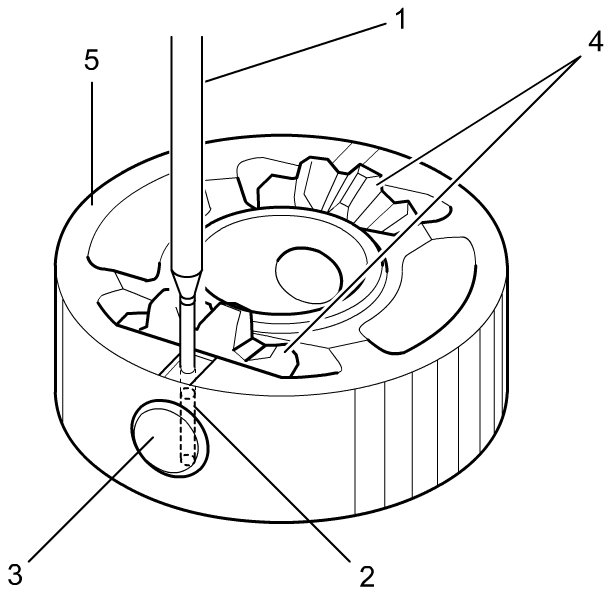

1) Using spring pin remover (1) with 3 mm (0.1 in.) and hammer, drive out spring pin (2).
2) Disassemble center differential pinions (4) and pinion shaft (3) in center differential case (5).






Reassembly

Reverse disassembly procedure for Reassembly noting the followings.

- Use new spring pin (1).

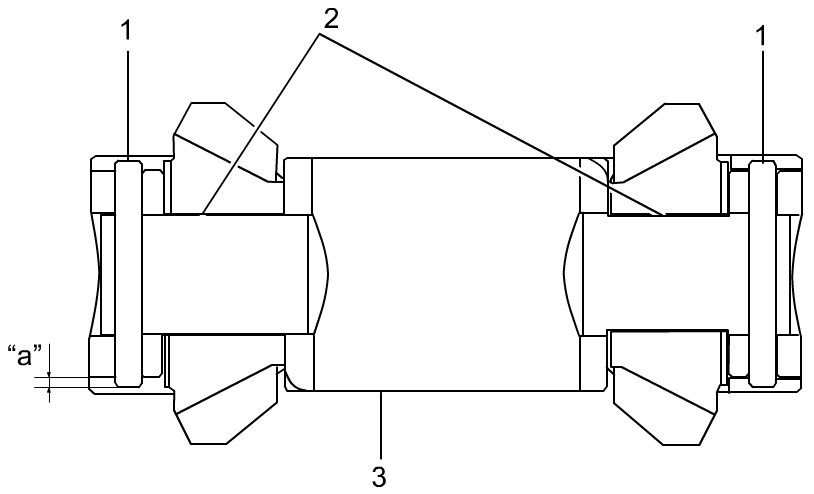

- Using spring pin remover and hammer, drive in new spring pin (1) till the protrusion "a" from differential case (2) surface is 1.3 mm (0.051 in.).
