Rear Output Shaft Assembly Disassembly and Reassembly

Rear Output Shaft Assembly Disassembly and Reassembly

Transfer Assembly Disassembly and Reassembly:

Disassembly

1) Remove circlip.

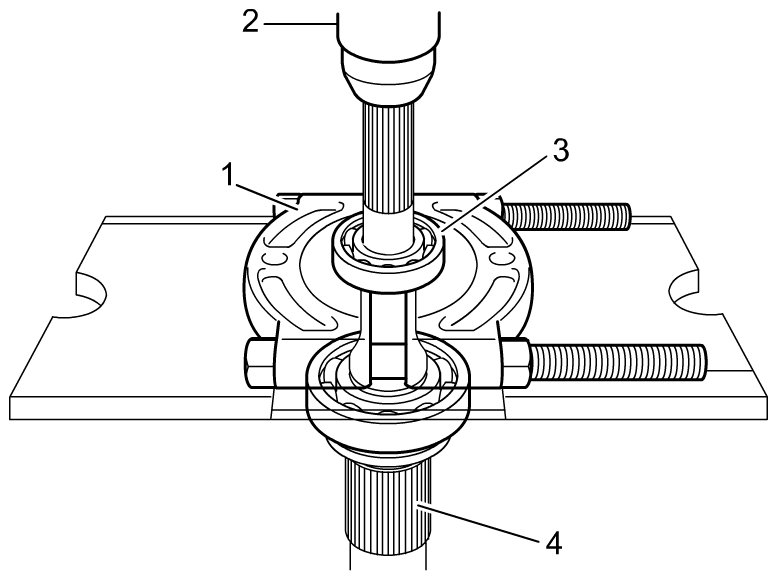

2) Remove bearing (3) from rear output shaft (4) using bearing puller (1) and press (2).





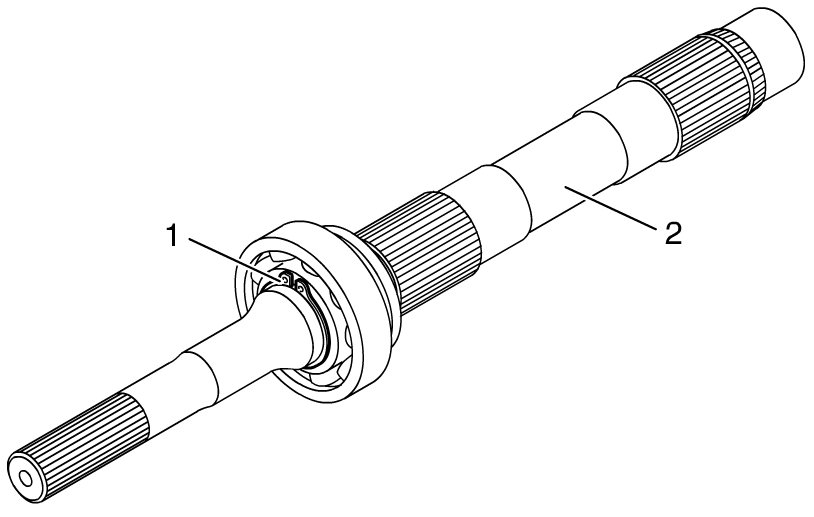

3) Remove snap ring (1) from rear output shaft (2).

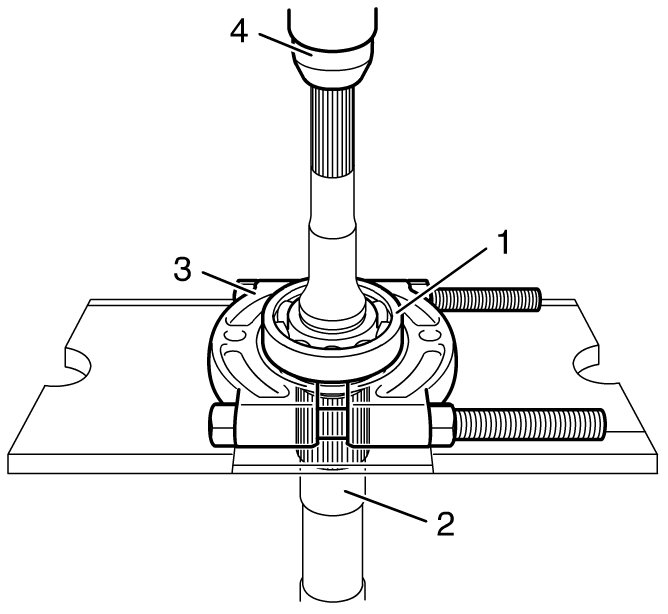

4) Remove bearing (1) from rear output shaft (2) using bearing puller (3) and press (4).






Reassembly

1) Clean all components thoroughly, inspect them for any abnormality and replace with new ones as necessary.

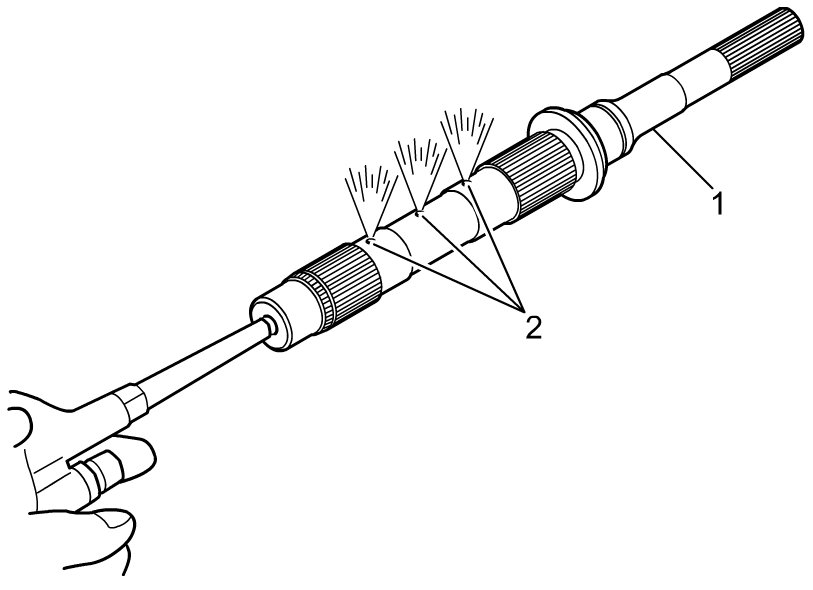

2) To ensure lubrication of rear output shaft (1), air blow oil holes (2) and make sure that they are free from any obstruction.

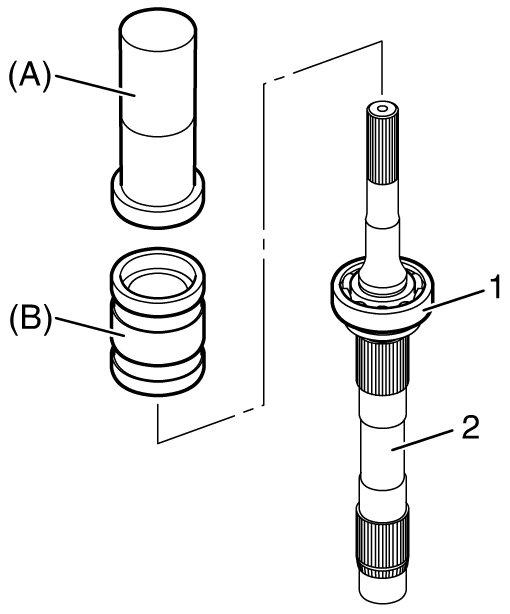

3) Press-fit bearing (1) to rear output shaft using special tools and press.
Special Tool

(A): 09913-85210

(B): 09940-54910





4) Install snap ring (1) to rear output shaft (2).

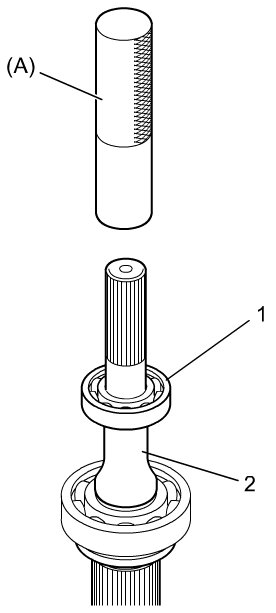

5) Press-fit bearing (1) to rear output shaft (2) using special tool and press.
Special Tool

(A): 09913-84510
