Front Output Shaft Assembly Disassembly and Reassembly

Front Output Shaft Assembly Disassembly and Reassembly

Transfer Assembly Disassembly and Reassembly:

Disassembly

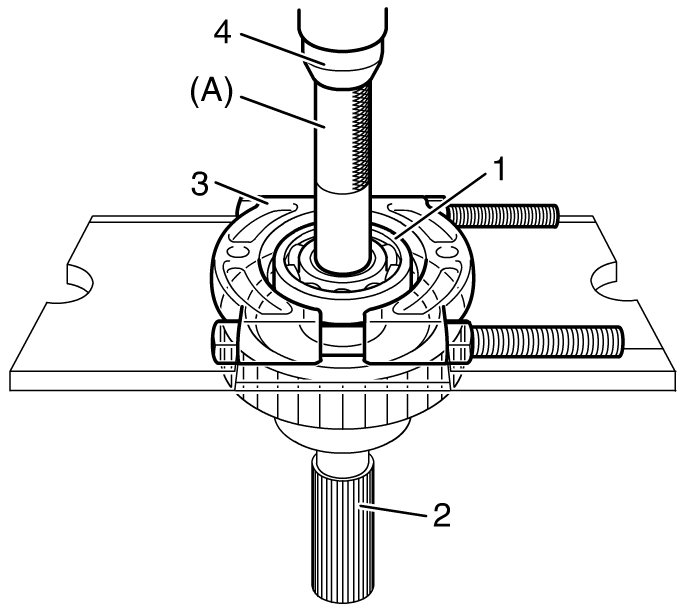

1) Remove bearing (1) from front output shaft (2) using special tool, bearing puller (3) and press (4).
Special Tool

(A): 09925-98221

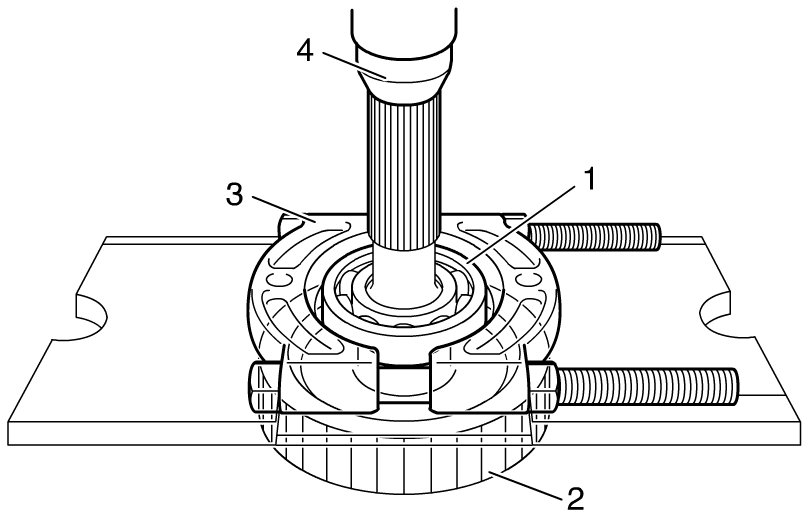

2) Remove bearing (1) from front output shaft (2) using bearing puller (3) and press (4).






Reassembly

1) Clean all components thoroughly, inspect them for any abnormality and replace with new ones as necessary.

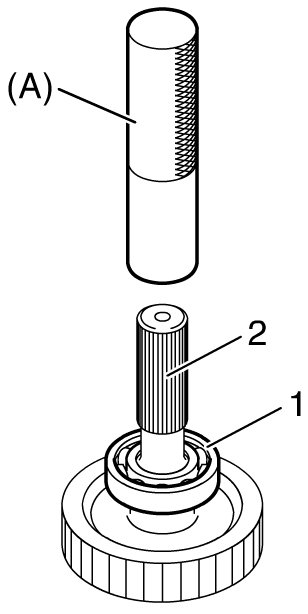

2) Press-fit bearing (1) to front output shaft using special tool and press.
Special Tool

(A): 09913-84510

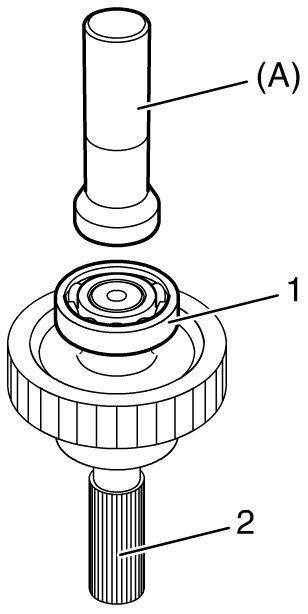

3) Press-fit bearing (1) to front output shaft using special tool and press.
Special Tool

(A): 09913-76010
