Transfer Switch Removal and Installation




Transfer Switch Removal and Installation

Removal

Remove HVAC control module referring to HVAC Control Module Removal and Installation HVAC Control Module Removal and Installation

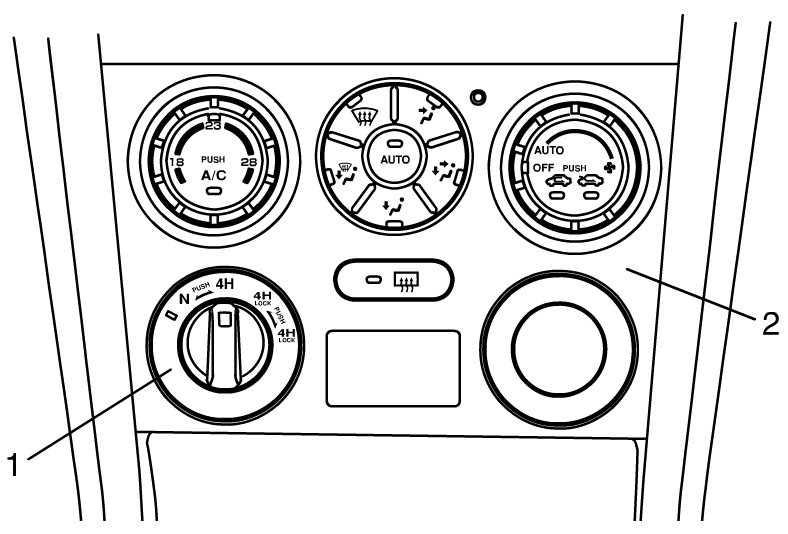

, and then remove transfer switch (1) from center cluster (2).





Installation

Reverse removal procedure.
