Starter Relay: Locations

Fuses and the Protected Parts

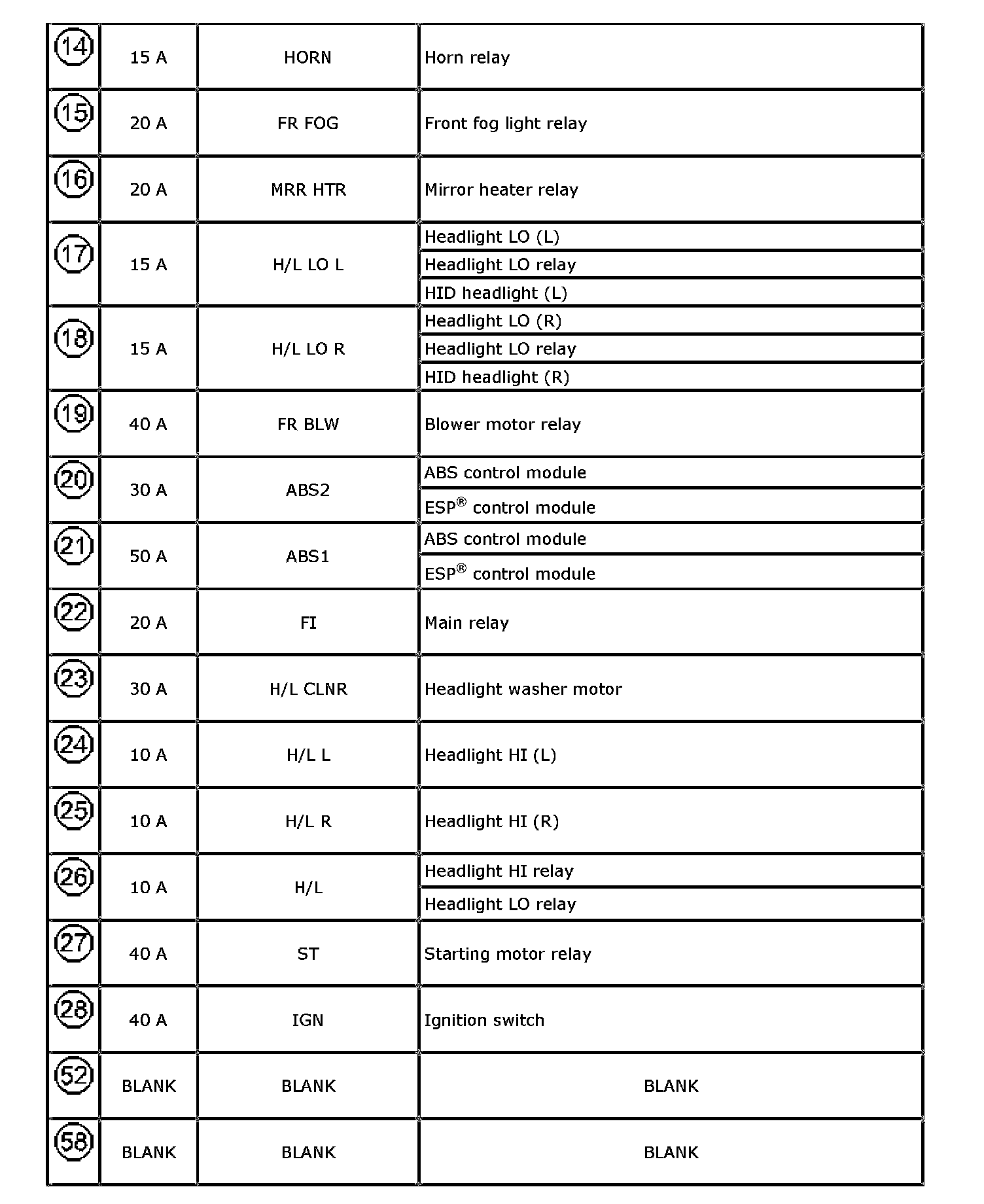

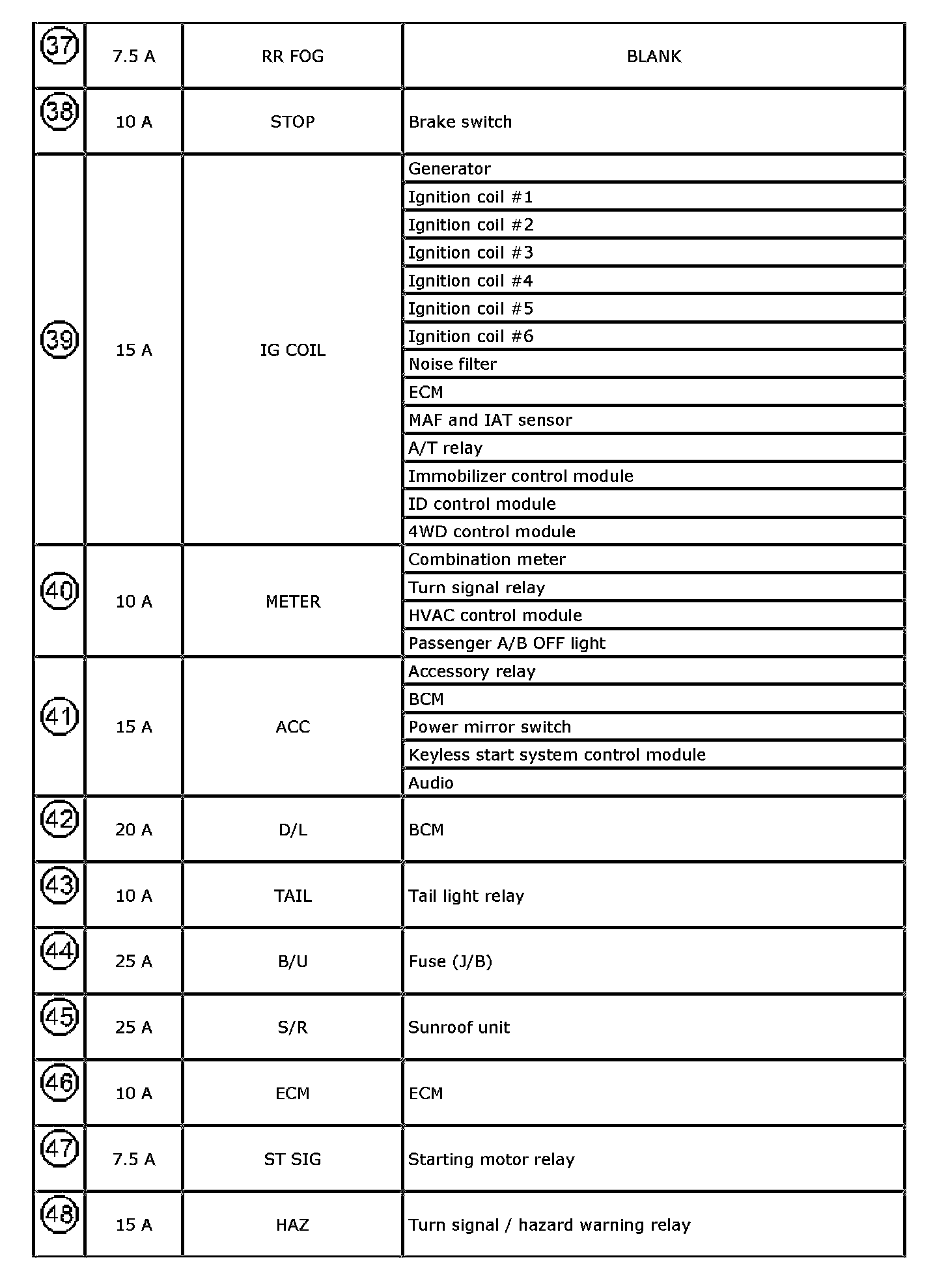

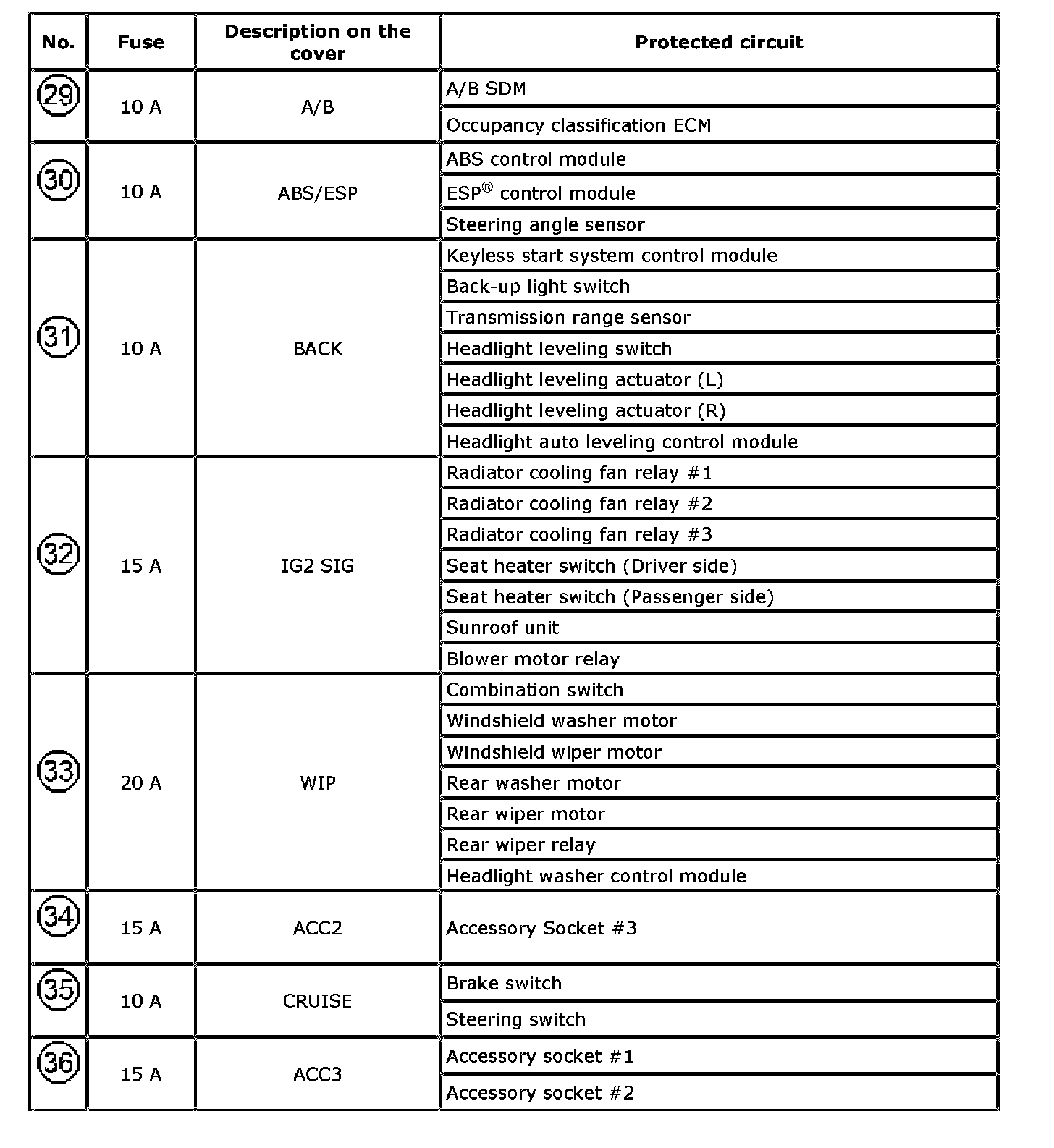

The chart below describes what parts each fuse protects.

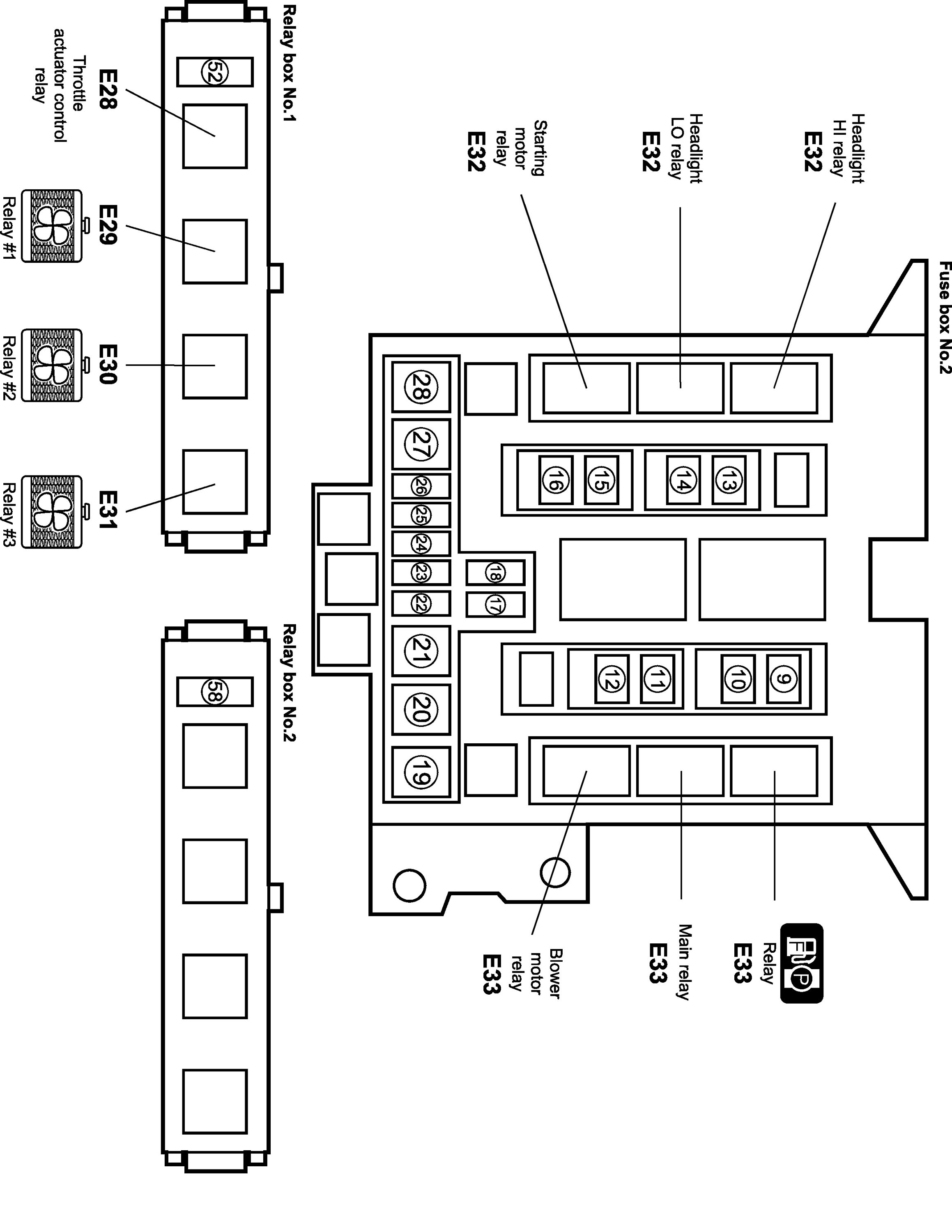

Fuse Box No.2 (In Power Integration No.1, Power Integration No.2), Relay Box No.1, Relay Box No.2

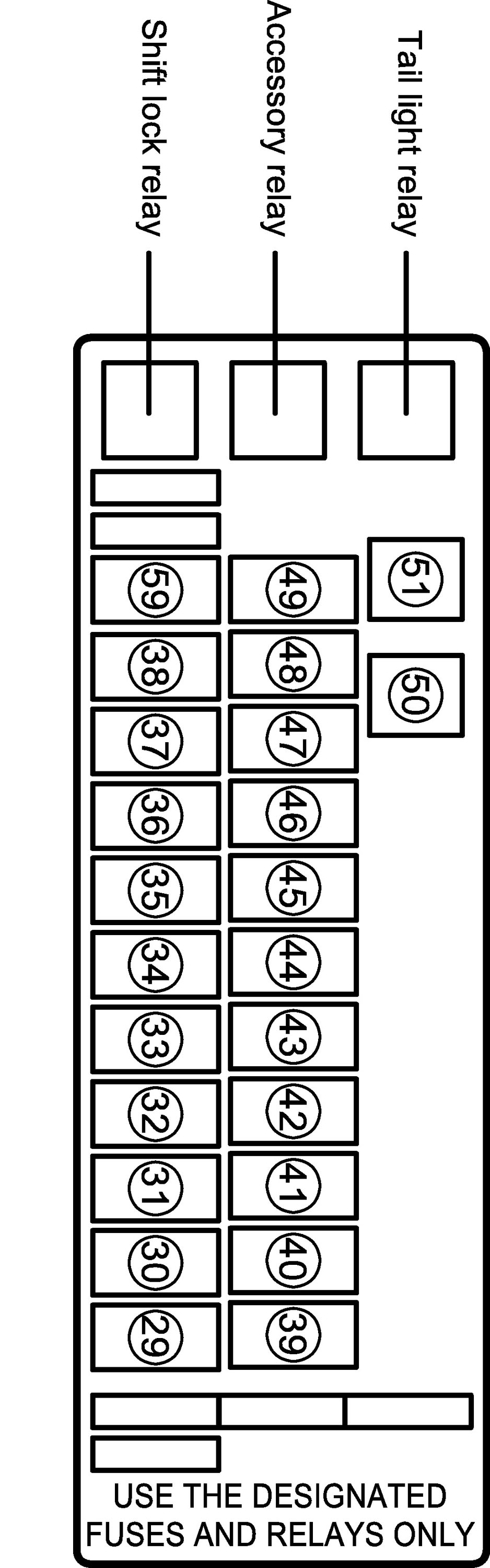

Fuse Box No.3 (In J/B)
