Floor

Floor

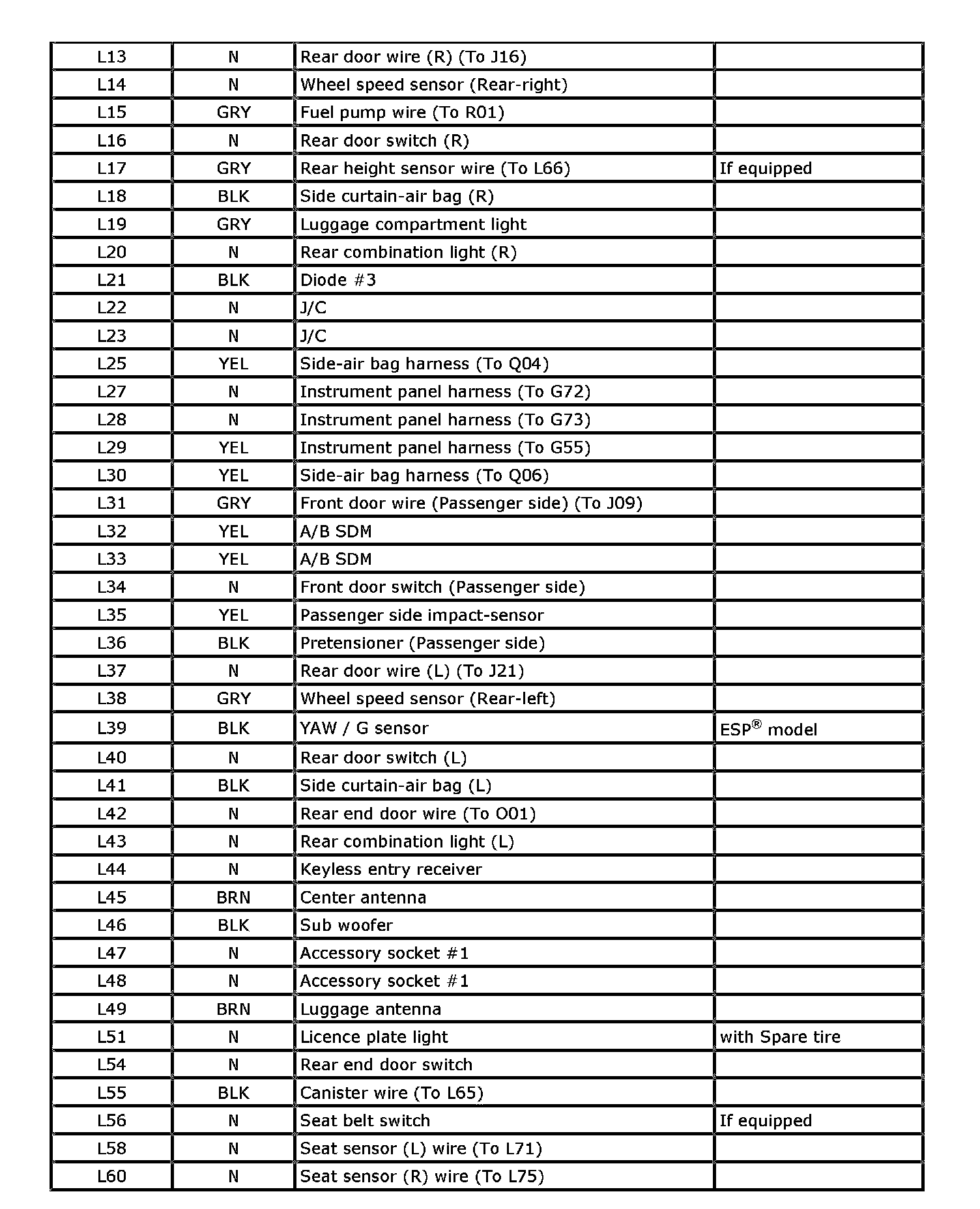

L: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-Air Bag Harness





L: Floor Harness
