Headlamp Washer Pump: Service and Repair

Headlight Washer Pump Removal and Installation (If Equipped)

Removal

1) Remove front bumper referring to Service and Repair Front Bumper Components.

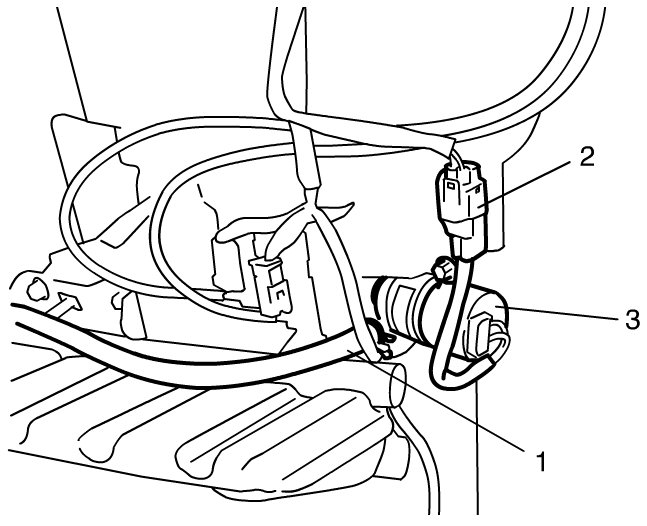

2) Disconnect headlight washer hose (1) and washer pump connector (2) from headlight washer pump (3).
3) Remove headlight washer pump from washer tank.





Installation

Reverse removal procedure for installation.
