Transmission Mount: Service and Repair

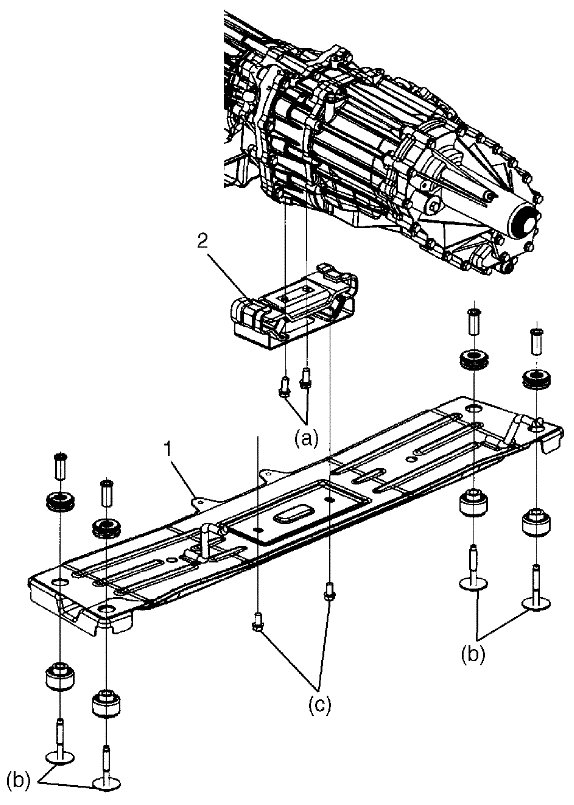

Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts as specified below.

Tightening torque
Engine rear mounting No.1 bolt (a): 55 Nm (5.5 kgf-m, 40.0 lbf-ft)
Engine rear mounting member bolt (b): 55 Nm (5.5 kgf-m, 40.0 lbf-ft)
Engine rear mounting No.2 bolt (c): 55 Nm (5.5 kgf-m, 40.0 lbf-ft)
